Product introduction

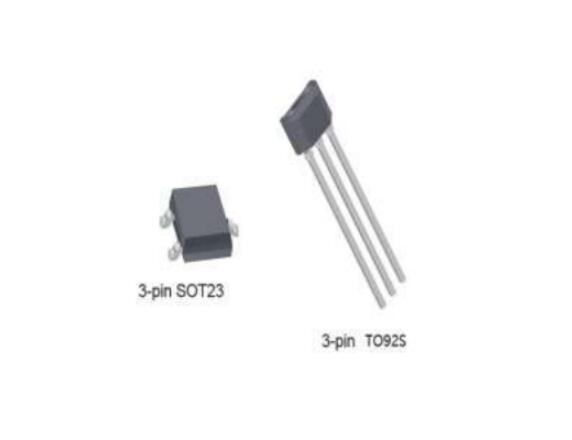

The AH465 is a low-power, high-sensitivity unipolar Hall-effect switch IC designed and manufactured using CMOS technology. The device integrates a voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilizer, Schmitt trigger, and CMOS output driver. It features good temperature stability, high stress resistance, and high sensitivity, with an operating voltage of 2.5V to 5.5V. Available in TO92S through-hole package and SOT23-3L surface-mount package, both compliant with RoHS environmental standards.
1.Features of the low-power high-sensitivity unipolar Hall-effect sensor IC -AH465:
Push-pull output
ESD performance: ±6kV
Operating voltage: 2.5V to 5.5V
Micro-power battery-powered applications
Unipolar output switch
2.Features of the low-power high-sensitivity unipolar Hall-effect sensor IC -Applications of AH465:
Solid-state switches
Bluetooth headphone charging case
Portable disinfection box
Laptop computers
Magnetic sensing switches replacing reed switches in low-duty-cycle applications
Level gauges
Proximity switches
