Marine Titanium Alloy Level Transmitter - CS-PT460
±0.25, ±0.5%F.S accuracy; accuracy ensured across full temperature range; OEM customizable; titanium alloy oil-filled core; high-temperature, high-strength, acid-resistant cable; resistant to microbial slime corrosion; multiple ranges and signal outputs; non-polar two-wire current output; digital calibration.
Applications: seawater measurement, ship draft measurement, corrosive media, thermal boilers, chemical experiments, high-temperature sites, harbor water depth, offshore bridge clearance measurement.
Product Introduction

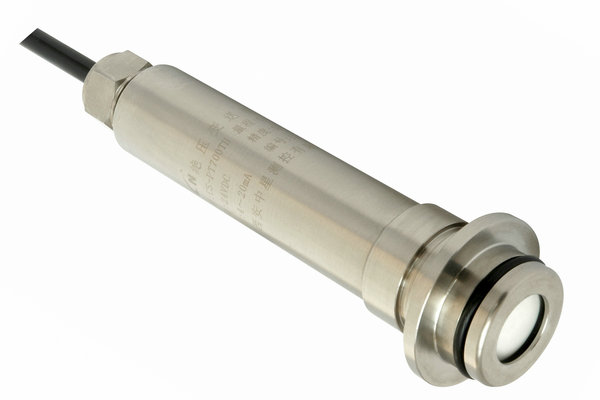

1. Marine Titanium Alloy Level Transmitter CS-PT460 Product Description
The CS-PT460 series level transmitter is a high-reliability, high-stability, high-precision, full-temperature-zone digitally compensated level transmitter, designed specifically for various seawater measurements.
The product's oil-filled core and housing are entirely made of titanium alloy, allowing safe long-term use in seawater at -20℃~70℃. Digital compensation ensures that accuracy is not reduced or lost across the full temperature range, and zero and full-scale calibration can be conveniently performed via a computer interface, with external program-controlled adjustment of zero and span also available.
Special breathable cables with wear resistance, oil resistance, acid/alkali resistance, and high strength can be configured according to different application sites.
2. Marine Titanium Alloy Level Transmitter CS-PT460 Product Features and Application Fields
±0.25, ±0.5%F.S accuracy; accuracy ensured across full temperature range; OEM customizable; titanium alloy oil-filled core; high-temperature, high-strength, acid-resistant cable; resistant to microbial slime corrosion; multiple ranges and signal outputs; non-polar two-wire current output; digital calibration.
Applications: seawater measurement, ship draft measurement, corrosive media, thermal boilers, chemical experiments, high-temperature sites, harbor water depth, offshore bridge clearance measurement.
3. Marine Titanium Alloy Level Transmitter CS-PT460 Technical Parameters
| Pressure Range: 0~1….100mH2O/–1bar~0~100bar |
||
| Overload Pressure: 2 times rated pressure |
Burst Pressure: 4 times rated pressure |
|
| Operating Temperature: –20℃~70℃ |
Compensated Temperature: –20℃~70℃ |
|
| Accuracy: ±0.5%F.S |
Stability: 0.25%F.S/year |
|
| Output Signal: 4~20mA |
Power Supply: 10~36Vdc |
|
| Load Resistance: (U-10)/0.02(Ω) |
Insulation: >100M Ω@50V |
|
| Compatible Media: Seawater in any region |
Protection Class: IP68 |
|
| Pressure Type: Gauge G, Absolute A |
|
|
| EMC: EN50081-1/-2; EN50082-2 |
||
