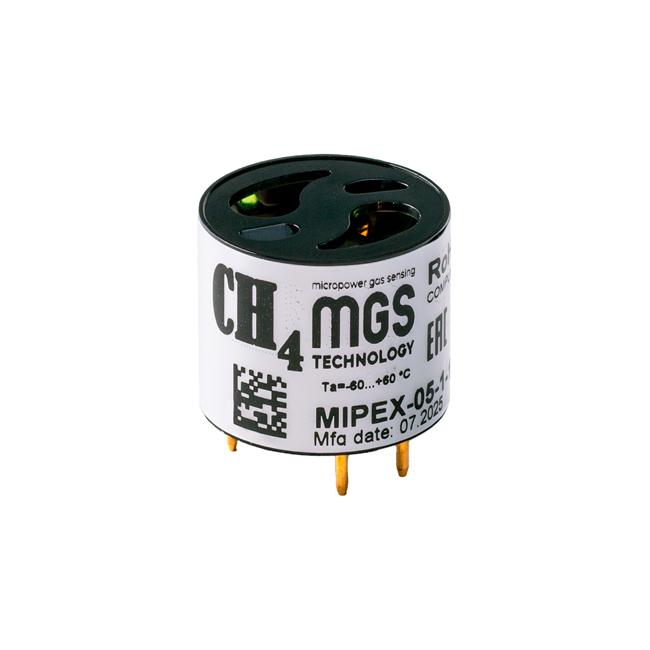

MGS MIPEX Ultra-Low Power NDIR Optical Gas Sensor CH4 Methane Sensor - MIPEX-05
Power consumption: less than 0.2 mW (average current < 60 μA)
Measurement range: 0-5% vol and 0-100% vol (CH₄)
Operating temperature: -40 ~ +60 °C
Response time (T90): 15 s (without dust filter)
Product Introduction
MGS MIPEX Ultra-Low Power NDIR Optical Gas Sensor CH4 Methane Sensor MIPEX-05 Description:
The MIPEX-05 (CH₄) sensor combines ultra-low power consumption and robust performance, enabling its use in compact portable and wireless gas detectors for methane detection in explosive atmospheres.
MGS MIPEX Ultra-Low Power NDIR Optical Gas Sensor CH4 Methane Sensor MIPEX-05 Features:
Power consumption: less than 0.2 mW (average current < 60 μA)
Measurement range: 0-5% vol and 0-100% vol (CH₄)
Operating temperature: -40 ~ +60 °C
Response time (T90): 15 s (without dust filter)
Interface: UART digital output
Size: 20.1⌀ × 16.6 mm
Housing: Polycarbonate Lexan™
Protection rating: IP20 / IP54 (with dust filter)
