Product Introduction

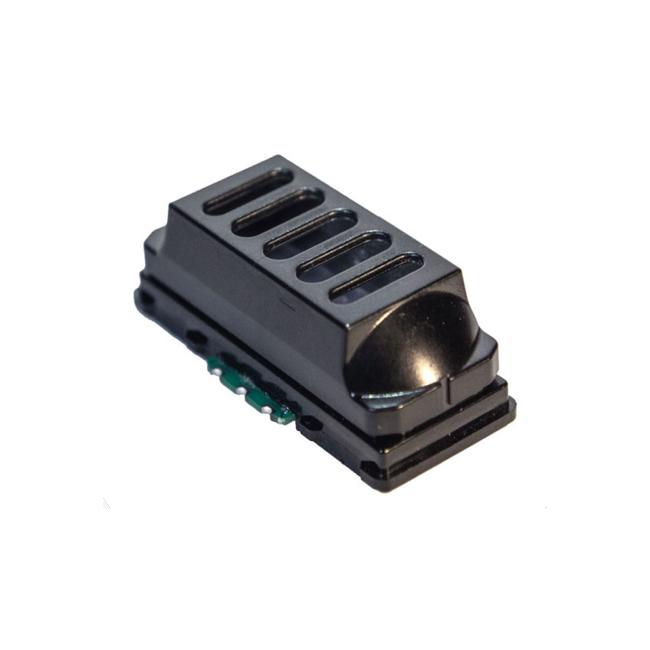

MGS NDIR Sensor CH4 Methane Sensor PPM MIPEX-04 PPM (CH₄) Description:
MIPEX-04 PPM (CH₄) is a high-precision NDIR sensor for low-level methane detection in industrial safety portable gas detectors.
It features ultra-low power consumption (average below 100 µA), stable long-term performance, and high sensitivity (from 50 ppm to 5% vol). The sensor supports UART communication and a wide input voltage range (2.5-5.0 V), making it easy to integrate into battery-powered devices.
MGS NDIR Sensor CH4 Methane Sensor PPM MIPEX-04 PPM (CH₄) Features:
High sensitivity: detects CH₄ from 50 ppm
10 ppm measurement resolution
Low power design: average power consumption less than 0.3 mW (2.5 V)
Fast response: T90 < 30 seconds
Intrinsic safety: certified Ex "ia", no sintered filter required
Lifetime: stable performance for more than 10 years
Interface: UART output: linearized and temperature-compensated data, ready to use
