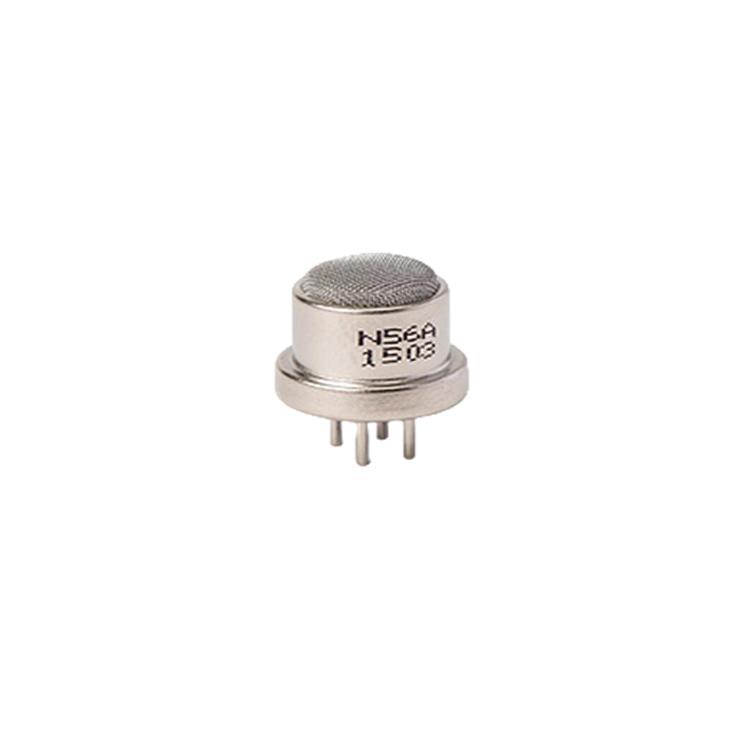

Japan NEMOTO Catalytic Combustion Gas Sensor NAP-56A Description:
NAP-56A is the same as NAP-55A, mainly used for combustible gas leak alarms. Since no thermoplastic material is used, its high-temperature resistance is improved compared to NAP-55A. The pins are designed with interchangeability in mind, allowing it to replace NAP-55A in actual use. However, the corresponding gas sensitivity value is about 15% higher than NAP-55A, so necessary adjustments should be made when setting the alarm.
Japan NEMOTO Catalytic Combustion Gas Sensor NAP-56A Parameters:
Detected gas types and concentrations (values in parentheses indicate concentration ranges for high-precision detection)
| Gas Type |
Measured Concentration Range |
|
| Methane |
CH4 |
0.05-5% (0.05-2%) |
| Ethane |
C2H |
0.05-3.2% (0.05-1.5%) |
| Hydrogen |
H2 |
0.05 - 4%(0.05-1.5%) |
| Hydrocarbons |
C.H2n+2 |
1-100% LEL (1-50% LEL) |
Gas Sensitivity Characteristics
| Gas Type |
Output Value |
|
| Output in Clean Air |
-35 - +35_ mV |
|
| Methane |
3000ppm |
15-23 mV |
| Isobutane |
1400ppm |
12-18 mV |
| Hydrogen |
1400ppm |
10-17 mV |
Rated
| Voltage |
DC 2.5 ± 0.25V |
| AC 2.5 ± 0.25V (50-60Hz) |
|
| Current |
DC160-180mA |
| AC 160-180 mA (50-60 Hz) |
|
| Ambient Temperature Range |
During use: -10 to +50°C |
| During storage: -10 to +50°C |
|
| Ambient Humidity Range |
During use: 95% RH or less |
| During storage: 99% RH or less (no condensation) |
