Product Introduction

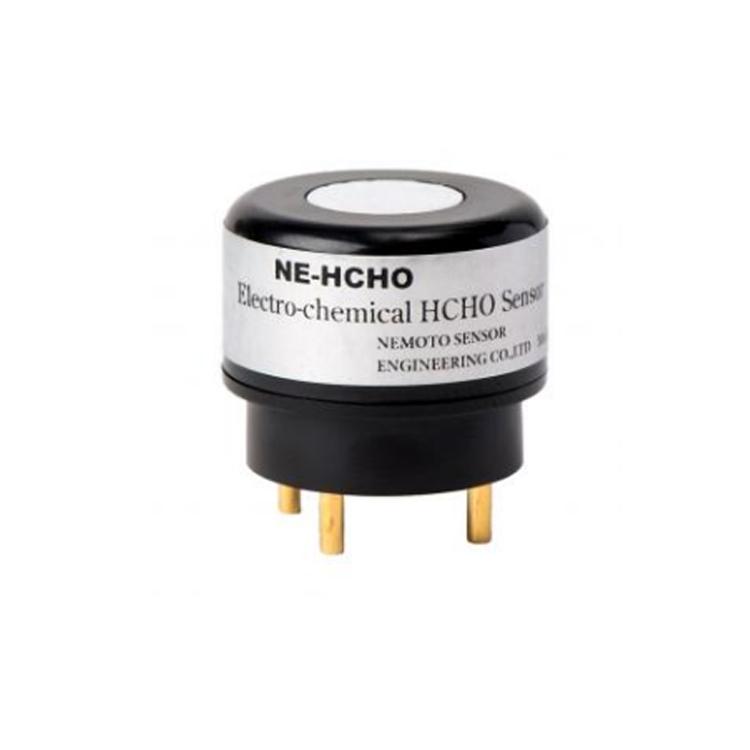

Japan NEMOTO Electrochemical Formaldehyde SensorNE-HCHO-S Description:
NE-HCHO-S is a formaldehyde gas sensor suitable for detection and measurement of formaldehyde residue concentration in wooden building materials or after sterilization. Suitable for various devices.
Japan NEMOTO Electrochemical Formaldehyde SensorNE-HCHO-SFeatures:
High Sensitivity
High Reliability
Low Power Consumption for Battery Operation
Japan NEMOTO Electrochemical Formaldehyde SensorNE-HCHO-SParameters:
| Detection Gas |
Formaldehyde |
| Detection Range |
0 ∼ 10 ppm |
| Maximum Overload |
50 ppm |
| Output Signal |
600 ± 150 nA/ppm |
| Repeatability |
± 5 % |
| Typical Baseline Range (Pure Air) |
< ± 0.05 ppm |
| Typical Response Time (T90) |
< 120 sec. (HCHO : 1 ppm) |
| Baseline Change (0 ∼ 40°C) |
< 0.2 ppm |
| Expected Lifetime |
More than 2 years |
Operating Conditions
| Operating Temperature |
-20 ∼ 50°C |
| Operating Humidity |
15 ∼90 % RH |
| Operating Pressure Range |
1atm ± 10 % |
| Load Resistance |
10 Ω |
| Bias Voltage |
Not Required |
| Storage Temperature |
0 ∼ 20°C |
| Storage Time |
Less than 6 months |
Physical Characteristics
| Housing Material |
PPO |
| Cap Color |
Black |
| Weight |
Approximately 5 g |
