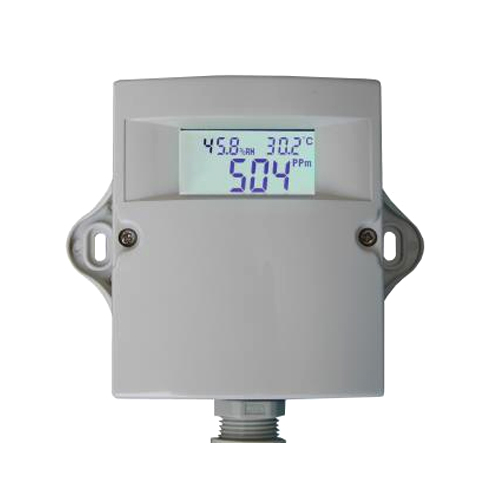

Neutral Green Duct Type CO2 Transmitter CO2 Transmitter - TG9 Series
Detection Element: NDIR Infrared CO2 Sensor
CO2 Measurement Range: 0~2,000ppm / 0~5,000ppm / 0~50,000ppm (select at order)
Temperature Measurement Range: -20℃~60℃ (default), 0~60℃ optional)
Relative Humidity Measurement Range: 0~100%RH
Temperature Accuracy: ±0.4℃ (25℃)
Humidity Accuracy: <±3%RH (25℃, 40%-60%RH)
Product Introduction
TG9 Series Duct TypeCarbon Dioxide Transmitter
• TG9 SeriesCO2 Transmitteris specifically designed for measuring CO2 concentration in HVAC ducts.
• The CO2 detection element uses an NDIR non-dispersive infrared self-diffusion sensor with self-calibration function to ensure long-term stability, with a service life of up to 15 years.
• Temperature and humidity options use high-precision digital temperature and humidity sensors.
• Provides one or three 0~10VAC/4~20mA analog linear outputs
• Provides Modbus RS485 communication interface option.
• Optional LCD backlit display showing all measured values
• Simple and compact structural design, with detachable and cleanable or replaceable filter for dust protection to avoid external contamination affecting measurement values, making measurement more accurate.
• Provides split sensor probe model TG5 series with 2-meter connection cable for special places such as incubators and food storage
TG9 Series CO2 TransmitterFeatures
• Real-time monitoring of CO2 concentration in ducts and enclosed containers
• Uses NDIR CO2 infrared sensor with self-calibration function, service life up to 15 years
• Real-time detection of temperature and humidity (optional)
• Integrated temperature and humidity sensor provides fully linear high-precision measurement
• LCD real-time display of CO2 measurement value, also displays temperature and humidity measurement values (optional)
• Provides 1 or 3 channels of 0~10V/4~20mA analog output
• Modbus RS485 communication makes operation and detection easier
• Intelligent structure and novel appearance bring unique operating experience
• Simple and compact design for installation, detachable filter for dust protection, easy to clean and replace,
• Unique 180-degree rotating detection position selection, probe installation position can be changed according to wind direction
• All housings and detectors are IP54 rated
• CE certified
TG9 Series CO2 TransmitterApplications
• Building HVAC systems for offices and residences
• All ventilation systems
• CO2 concentration monitoring and control in plant factories and greenhouses
• Food storage, incubators
• Other places requiring real-time monitoring and control of CO2 concentration
TG9 Series CO2 TransmitterTechnical Specifications
| Detection Element |
NDIR Infrared CO2 Sensor |
|
| CO2 Measurement Range |
0~2,000ppm / 0~5,000ppm / 0~50,000ppm (select at order) |
|
| Accuracy (@22℃, 40%~60%RH) |
±40ppm+3%FS (for 0~2,000ppm / 0~5,000ppm) ±75ppm or 10%FS (for 0~50,000ppm) |
|
| Stability |
2% within 10 years |
|
| Calibration Cycle |
ABC Logic self-calibration (no user calibration required) |
|
| Response Time |
90% change within 2 minutes in low-speed ducts |
|
| Nonlinearity |
<1%（22℃） |
|
| Airflow Velocity in Duct |
0~450 m/min |
|
| Pressure Coefficient |
0.135% of reading per mmHg |
|
| Warm-up Time |
2 hours (first power-on) 1 minute (daily operation) |
|
| Digital Temperature and Humidity Integrated Sensor |
Temperature |
Relative Humidity |
| Measurement Range |
-20℃~60℃ (default) 0~60℃ optional) |
0 ~100%RH |
| Accuracy |
±0.4℃ (25℃) |
<±3%RH (25℃, 40%-60%RH) |
| Resolution |
0.1℃ |
0.1%RH |
| Stability |
±0.1℃/year |
±1%RH/year |
| Other Data |
|
|
| Power Supplies |
24VAC/24VDC |
|
| Power |
Max power 1.8 W; Average power 1.0 W |
|
| LCD Display |
Displays CO2 measurement value or displays CO2 + temperature and humidity measurement values |
|
| Analog Output |
1x0~10VAC or 4~20mA output (corresponding to CO2) 3x0~10VAC or 4~20mA output (corresponding to CO2/temperature/humidity) Voltage output/current output selectable via jumper |
|
| Modbus RS485 Communication Interface |
19200bps, 15KV anti-static protection |
|
| Operating Environment |
0℃~50℃; 0~95%RH, non-condensing |
|
| Storage Conditions |
0℃~50℃; 0~95%RH, non-condensing |
|
| Storage Conditions |
0~50℃ |
|
| Net Weight |
320g | |
| IP Protection Rating |
IP50 (for models without LCD) IP40 (for models with LCD) |
|
| Certifications |
CE Certification |
|
TG9 Series CO2 Transmitter Selection Table
| Model |
Feature Description |
|
|
CO2 Duct TypeTransmitter
Without LCD display
|
TG9106-02/05 |
1 analog output corresponding to CO2 measurement value. -02: CO2 measurement range 0~2000ppm -05: CO2 measurement range 0~5000ppm |
| TG9116-02/05 |
1 analog output corresponding to CO2 measurement value. Modbus RS485 Communication Interface -02: CO2 measurement range 0~2000ppm -05: CO2 measurement range 0~5000ppm |
|
| TG9316-02/05 |
3 analog outputs corresponding to CO2, temperature, and humidity measurement values Modbus RS485 Communication Interface |
|
|
CO2 Duct TypeTransmitter
With LCD display
|
TG9116L-02/05 |
1 analog output corresponding to CO2 measurement value. LCD displays CO2 concentration value Modbus RS485 Communication Interface |
| TG9316L-02/05 |
3 analog outputs corresponding to CO2, temperature, and humidity measurement values LCD displays CO2, temperature, and humidity values Modbus RS485 Communication Interface |
|
| Split CO2Transmitter |
TG5106 |
1X analog linear output corresponding to CO2 measurement value, split sensor probe (2 meters), CO2 range: 0~50,000ppm |
| TG5016 |
Modbus RS485 communication interface; split sensor probe (2 meters). CO2 range: 0~50,000ppm |
|
| TG5116 |
1X analog linear output corresponding to CO2 measurement value, Modbus RS485 communication interface; split sensor probe (2 meters). CO2 range: 0~50,000ppm |
|
| TG5016-TH |
CO2 + temperature + humidity measurement, Modbus RS485 communication interface output. split sensor probe (2 meters). CO2 range: 0~50,000ppm |
|
| TG5116L |
1X analog linear output corresponding to CO2 measurement value, Modbus RS485 communication interface. LCD displays CO2 measurement value. Split sensor probe (2 meters) CO2 range: 0~50,000ppm |
|
| TG5016L-TH |
CO2+temperature+humidity measurement, LCD display,Modbus RS485 communication interface output. Split sensor probe (2 meters). CO2 range: 0~50,000ppm |
|
