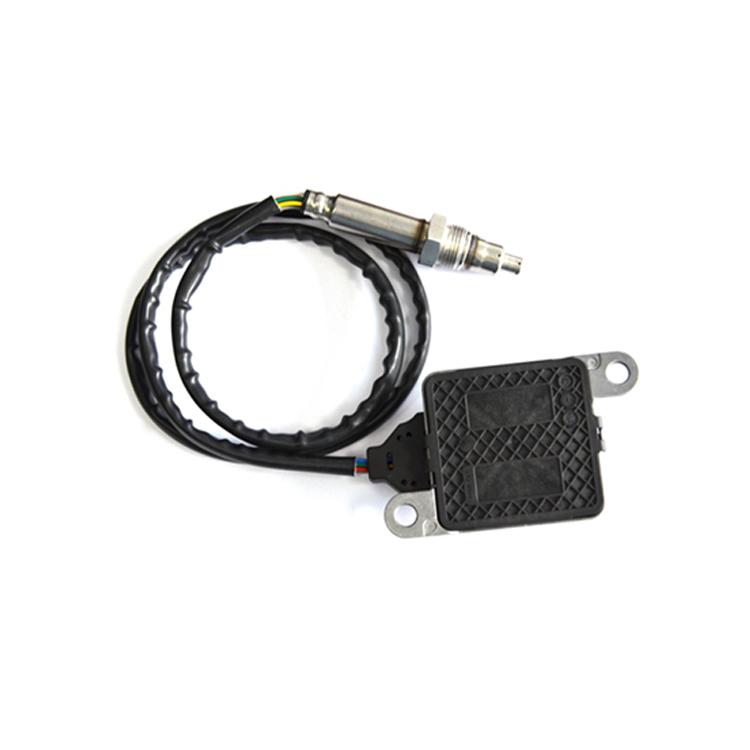

Gas Sensor NOx Sensor AS0101 Description:
An electrochemical sensor used to test the concentration of nitrogen oxides (NOx) and oxygen (O2) in gas. It communicates via CAN by sending detection data and receiving commands from the host system, enabling communication for the NOx sensor. The product accurately detects the concentration of nitrogen oxides (NOx) and oxygen (O2) in exhaust gas, meeting the requirements of the 'Limits and Measurement Methods for Emissions from Light-duty Vehicles (China Phase 5)' and 'Limits and Measurement Methods for Emissions from Heavy-duty Diesel Vehicles (China Phase 5)'.
Gas Sensor NOx SensorAS0101 Parameters:
| Parameter |
Parameter Specification |
|
| Bus |
CAN2. OB |
|
| Communication Transmission Rate |
250KB |
|
| Transmission Length |
8 bytes |
|
| Communication Data |
ComplianceSAE-J-1939 |
|
| Controller Operating Environment |
Temperature Range |
Standard-40C ~+125'C |
| Relative Humidity |
10% 95% |
|
| Atmospheric Pressure |
56~ 106 kpa |
|
| Output Signal |
NOxConcentration,02Concentration and sensor working status information |
|
| Test Range |
NOx : 0-3000ppm，02:0% -21% |
|
| Oxygen Accuracy |
0%-5% ， 02±0.2% 5%- -21% ，02±4% |
|
| Test Accuracy |
0-100ppm:±10ppm ，100-500ppm: ±10% 500-1500ppm:± 15%，1500-3000ppm:±30% |
|
| Startup Response Time |
<80s |
|
| Signal Switching Response Time |
Time to reach final value33%to66%time<1400ms; |
|
| Applicable Test Gas Temperature Range |
- -40-800”C |
|
| Storage Environment |
Dry, ventilated, non-corrosive environment |
|
Gas Sensor NOx SensorAS0101Applications:
After-treatment systems for fuel and gas vehicle engines
Such as SCR systems, EGR systems
Exhaust gas treatment systems for coal and gas power plants
Combustion exhaust gas treatment systems for biomass boilers

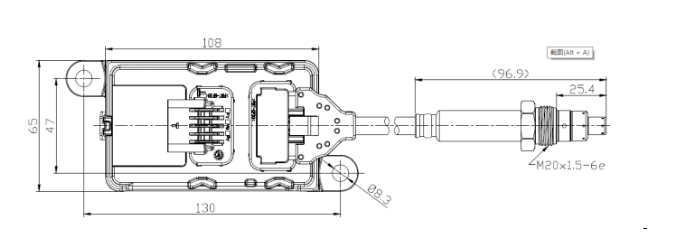

Gas Sensor NOx SensorAS0101 Dimensions:
