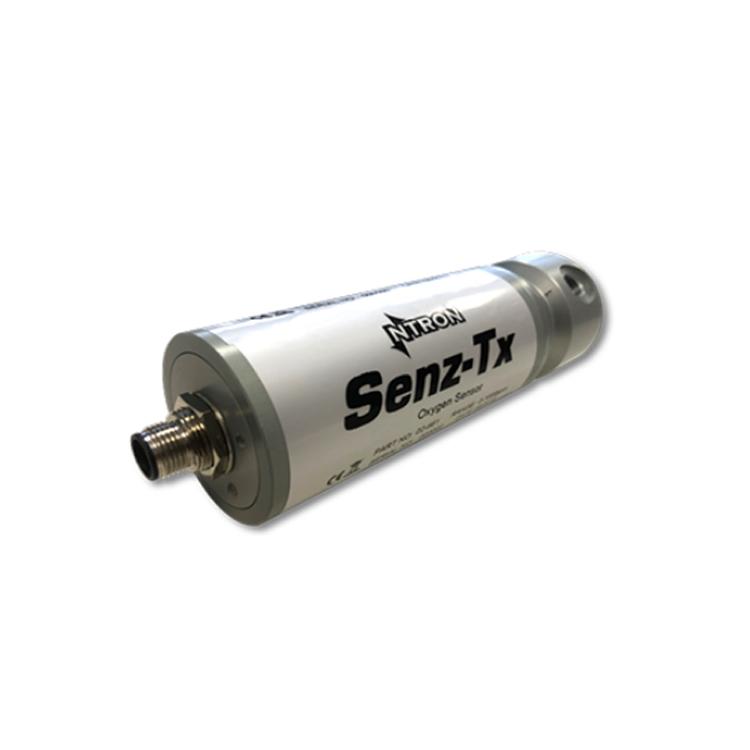

Ntron Oxygen Transmitter - SenzTX

Ntron Oxygen TransmitterSenzTx Description:

The SenzTx is a compact and rugged oxygen transmitter that utilizes zirconia or electrochemical technology to provide reliable measurement of oxygen concentration. The zirconia sensor offers fast response, long life, and no drift; while the electrochemical sensor allows measurement in background gases containing hydrocarbons.

Minimum output range 0 to 10ppm for monitoring oxygen in nitrogen generation or glove boxes. SenzTx transmitter range 0 - 96% O2 is available for medical oxygen generators.

Multiple output options via process connections further increase the instrument's flexibility.

Ntron Oxygen TransmitterSenzTx Features:

Optional zirconia or electrochemical technology

Range: 0 to 10ppm up to 0 - 96% O2

RS 485 Modbus communication protocol

Power supply 24VDC

KF40 flange, in-line and flow-through

Optional orifice connection

Combines sensor and electronics for easy integration

Compact and lightweight (< 0.3Kgs)

Ntron Oxygen TransmitterSenzTx Applications:

Metal additive manufacturing

Inert gas measurement in glove boxes

Medical gas measurement solutions

Oxygen measurement in reflow soldering ovens
