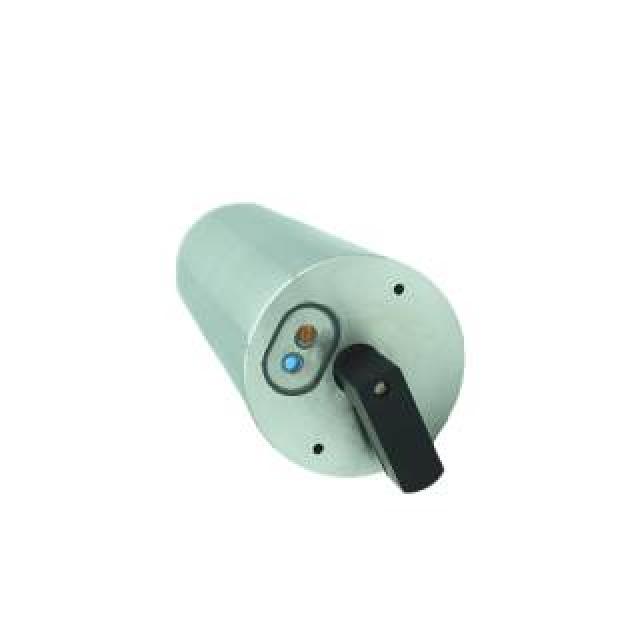

Online Oil-in-Water Sensor for Oilfield Produced Water Monitoring - SKA/SZY-CGQ
Measurement Range: 0～100mg/L (optional 0~50mg/L, 0~500mg/L)
• Accuracy: ±5%FS
• Resolution: 0.1mg/L
• Output Signal: 4～20mA / RS485 Modbus
• Power supply: DC24V
• Medium Temperature: 0～50℃
• Working Pressure: 0～0.4MPa
• Material: 316L stainless steel probe, quartz glass optical window
• Protection Rating: IP68
• Installation Method: Immersion Installation
• Response time: ≤30s
• Warranty: 1 year
Product Introduction
Online Oil-in-Water Sensor for Oilfield Produced Water Monitoring - Product Overview
The online oil-in-water sensor is an online oil pollutant detection device used for oilfield produced water monitoring. Search keywords: online oil-in-water sensor, oilfield produced water monitoring, oil-in-water sensor. This sensor can continuously detect the concentration of oily substances in produced water and is suitable for oilfields, offshore platforms, and central treatment stations. In oilfield produced water monitoring, the online oil-in-water sensor can reflect changes in oil content in real time, helping operators control reinjection water quality and protect formations and equipment.
Online Oil-in-Water Sensor for Oilfield Produced Water Monitoring - Working Principle
The online oil-in-water sensor adopts the ultraviolet fluorescence principle, exciting oily substances to produce fluorescence and detecting fluorescence intensity to calculate oil content in water. In oilfield produced water monitoring, the online oil-in-water sensor uses a flow-through measurement method, resisting interference from oil fouling and suspended solids, and is suitable for high-salinity and high-oil-content wastewater. The sensor supports RS485, Modbus, and 4-20mA outputs, can be connected to PLC, DCS, and oilfield monitoring systems, and has automatic calibration and fault self-diagnosis functions.
Online Oil-in-Water Sensor for Oilfield Produced Water Monitoring - Application Scenarios
Online oil-in-water sensors are widely used in oilfield central treatment stations, produced water treatment units, reinjection pump outlets, and offshore platforms. In oilfield produced water monitoring, online oil-in-water sensors can be installed at discharge pipes, filters, and tank outlets to collect oil content data in real time. The sensors can be linked with oil removal equipment, alarm systems, and cloud platforms to achieve automatic warning and data publishing. For large oilfields, online oil-in-water sensors can also form a multi-point monitoring network and upload data uniformly to the oilfield monitoring center.
Online Oil-in-Water Sensor for Oilfield Produced Water Monitoring - Technical Advantages
Online oil-in-water sensors have advantages such as high precision, fast response, and good stability. In oilfield produced water monitoring, online oil-in-water sensors use corrosion-resistant housings and anti-fouling optical designs, making them suitable for long-term operation. The sensor supports remote calibration and fault self-diagnosis, making maintenance convenient. When selecting an online oil-in-water sensor, attention should be paid to measurement range, accuracy, response time, protection rating, and output signal to ensure it meets the needs of oilfield produced water monitoring.
Main Application Areas
- Oilfield Produced Water Monitoring — Continuous measurement of oil content in produced water to optimize separation processes and ensure environmental compliance.
- Offshore Platforms — Real-time oil-in-water monitoring on offshore platforms for discharge control and process optimization.
- Central Treatment Stations — Monitoring oil concentration in central treatment stations to maintain water quality for reinjection.
- Refinery Wastewater Treatment — Detection of oil pollutants in refinery wastewater to meet discharge standards and protect downstream equipment.
- Environmental Water Monitoring — Online monitoring of oil contamination in rivers, lakes, and industrial discharge points for environmental protection.
