Product Introduction

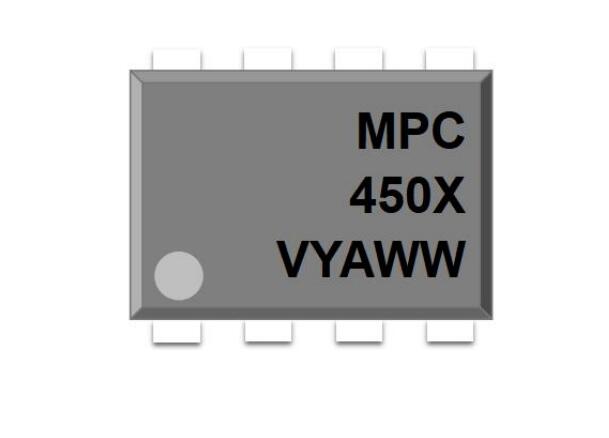

The 6N135, 6N136, and MPC450X series combine an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a plastic DIP8 package with different lead forming options.
The separate design between the photodiode and transistor reduces the base-collector capacitance of the input transistor, which improves speed by several orders of magnitude compared to conventional phototransistor optocouplers.
1. Optocoupler -Features of 6N135:
High isolation 5000 VRMS
DC input with transistor output
Operating temperature range -55°C to 100°C
RoHS & REACH compliant
Halogen-free (technical)
MSL Class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5（VDE0884-5）
-CQC – GB4943.1, GB8898
2. Optocoupler -Applications of 6N135:
Line receivers
Telecommunications equipment
Interface to CMOS-LSTTL-TTL
Wide bandwidth analog coupling
Pulse transformer replacement
Computer peripheral interface
