Optocoupler - 6N136
High isolation 5000 VRMS
DC input with transistor output
Operating temperature range -40°C to 100°C
RoHS & REACH compliant
Halogen-free (optional)
MSL Class 1
Regulatory Approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction

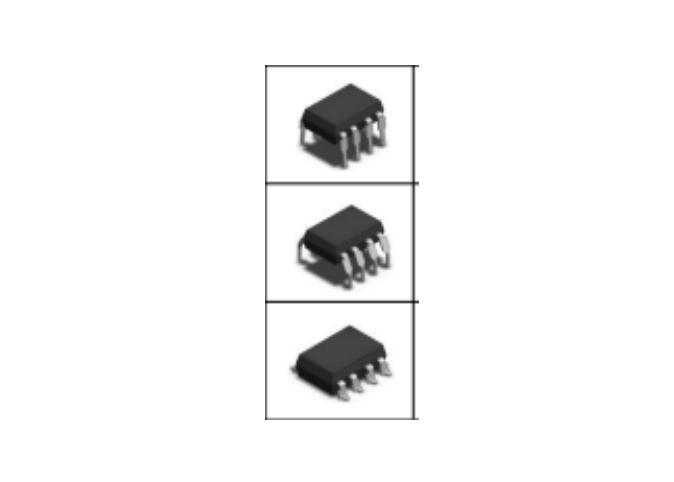

The 6N135, 6N136 series combine an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a silicon high-speed phototransistor in a plastic DIP8 package with different lead forming options. The separate design between the photodiode and transistor reduces the base-collector capacitance of the input transistor, which improves the speed by several orders of magnitude compared to conventional phototransistor optocouplers.
1. Features of Optocoupler - 6N136:
High isolation 5000 VRMS
DC input with transistor output
Operating temperature range -40°C to 100°C
RoHS & REACH compliant
Halogen-free (optional)
MSL Class 1
Regulatory Approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Applications of Optocoupler -6N136:
Line receivers
Telecommunications equipment
Interface output to CMOS-LSTTL-TTL
Wide bandwidth analog coupling
Pulse transformerreplacement
Computer peripheral interfaces
