Optocoupler - 6N137
High isolation 5000 VRMS
DC input with logic gate output
Operating temperature range -55°C to 110°C
RoHS & REACH compliant
Halogen-free; Halogen-free (technical)
MSL class 1
Product Introduction

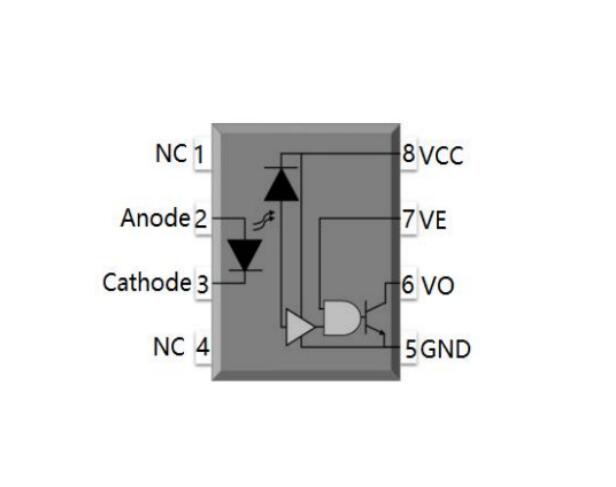

6N137is a single-channelhigh-speed optocoupler;for DC input with logic gate output 10Mbit/s; in DIP8 package; with temperature, current, and voltage compensation functions, high input-output isolation, LSTTL/TTL compatible, very small input current of 5mA. Combining an aluminum gallium arsenide infrared emitting diode as the emitter, optically coupled to a silicon high-speed integrated photodetector logic gate.
I.Optocoupler - Features of 6N137:
High isolation 5000 VRMS
DC input with logic gate output
Operating temperature range -55°C to 110°C
RoHS & REACH compliant
Halogen-free; Halogen-free (technical)
MSL class 1
Regulatory Approvals
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1, GB8898
II.Optocoupler -Applications of 6N137:
Ground loop elimination
LSTTL to TTL, LSTTL or CMOS
Line receivers, data transmission
Data multiplexing
Switching power supplies
Pulse transformer replacement
Computer peripheral interfaces
