Optocoupler - CNY17-X
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1
Product Introduction

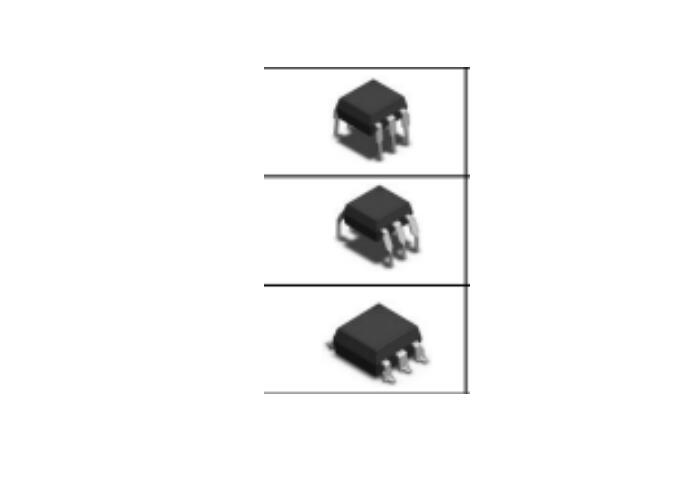

The CNY17-X, CNY17F-X series combines an aluminum gallium arsenide infrared emitting diode as the emitter, with a silicon planar phototransistor detector in a plastic DIP6 package, with different lead forming options.
1. Optocoupler -Features of CNY17-X:
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1
2. Optocoupler -Applications of CNY17-X:
Switching mode power supplies
Programmable regulators
Home appliances
Office equipment
