Product introduction

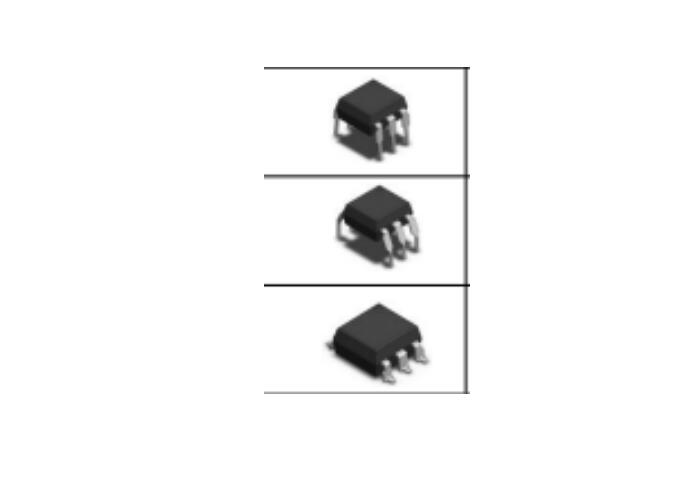

The H11LXX series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a Schmitt trigger detector in a plastic DIP6 package, with different lead forming options.
1. Optocoupler -Features of H11LXX-X:
High isolation 5000 VRMS
DC input with Schmitt trigger output
Operating temperature range -40°C to 100°C
REACH & RoHS compliant
MSL class 1
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -Applications of H11LXX-X:
Logic isolators
Programmable current level sensors
Line receivers - eliminating noise and transient issues
AC to TTL conversion - square wave shaping
Digital programming of power devices
Interfacing computers with peripherals
