Product Introduction

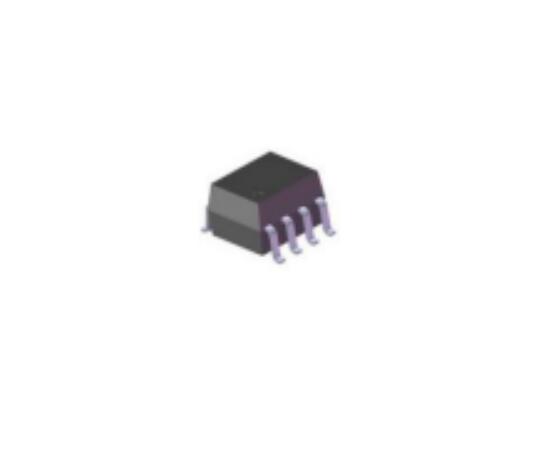

The ICPL-060X series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a silicon high-speed integrated photodetector logic gate with open collector output in a plastic SO8 package, with different lead forming options.
1. Optocoupler -Features of ICPL-060X:
High isolation 3750 VRMS
DC input with logic gate output
Operating temperature range -40°C to 100°C
REACH compliant
MSL Class 1
Regulatory approvals (pending approval):
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -Applications of ICPL-060X:
Ground loop elimination
LSTTL to TTL, LSTTL or CMOS
Line receivers, data transmission
Data multiplexing
Switching power supplies
Pulse transformer replacement
