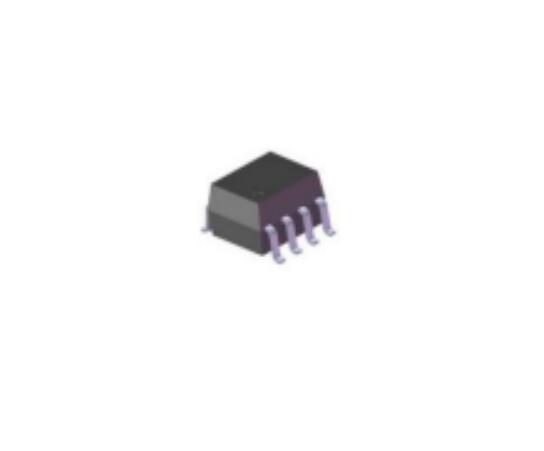

Optocoupler - ICPL-063X
3.3V/5V dual supply voltage
Low power consumption
High speed: typical 10 MBd
TTL/LVTTL/LVCMOS compatible
Low input current capability: 5 mA
Guaranteed AC and DC performance: -40°C to +85°C
Optional output (single-channel products only)
Safety approvals: UL, VDE, CQC
Product Introduction
The ICPL-0630/0631/063L is an optocoupler gate that combines a GaAsP light-emitting diode and a high-gain photodetector integrated optocoupler detector. The enable input allows the detector. The output of the detector IC is an open-collector Schottky-clamped transistor. Internal shielding provides a common-mode transient immunity specification of 10kV/µs at 3.3V. This unique design provides maximum AC and DC circuit isolation while achieving LVTTL/LVCMOS compatibility. The AC and DC operating parameters of the optocoupler are guaranteed from -40°C to +85°C, ensuring trouble-free system performance.
I. Optocoupler -Features of ICPL-063X:
3.3V/5V dual supply voltage
Low power consumption
High speed: typical 10 MBd
TTL/LVTTL/LVCMOS compatible
Low input current capability: 5 mA
Guaranteed AC and DC performance: -40°C to +85°C
Optional output (single-channel products only)
Safety approvals: UL, VDE, CQC
II. Optocoupler -Applications of ICPL-063X:
Isolated line receivers
Computer peripheral interfaces
Microprocessor system interfaces
Digital isolation for data and digital conversion
Switching power supplies
Instrument input/output isolation
Ground loop elimination
