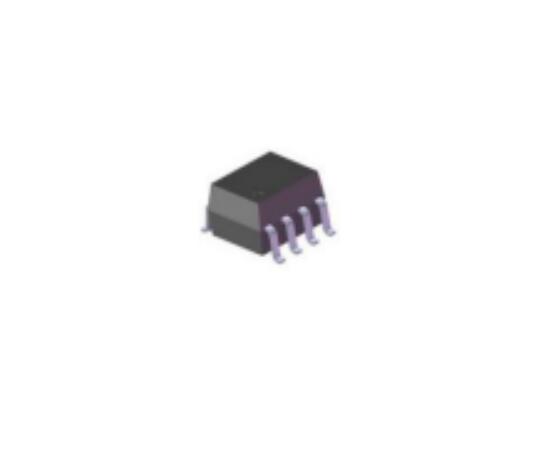

Optocoupler - ICPL-074L
+3.3V and +5V CMOS compatibility
30 ns max. pulse width distortion
40 ns max. propagation delay (3.3V supply voltage)
30 ns max. propagation delay skew
High speed: 25 MBd minimum
10kV/µs minimum common mode rejection
Temperature range from -40°C to 105°C
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
ICPL-074L (dual channel) is a 25MBd CMOS optocoupler in SOIC-8 package. The optocoupler utilizes new CMOS IC technology to achieve excellent performance with very low power consumption. The basic components of ICPL-074L are a high-speed LED and a CMOS detector IC. Each detector contains an integrated photodiode, a high-speed transimpedance amplifier, and a voltage comparator with an output driver.
1. Optocoupler -Features of ICPL-074L:
+3.3V and +5V CMOS compatibility
30 ns max. pulse width distortion
40 ns max. propagation delay (3.3V supply voltage)
30 ns max. propagation delay skew
High speed: 25 MBd minimum
10kV/µs minimum common mode rejection
Temperature range from -40°C to 105°C
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -Applications of ICPL-074L:
Digital fieldbus isolation
CANBus，RS485，USB
Multiplexed data transmission
Computer peripheral interface
Microprocessor system interface
