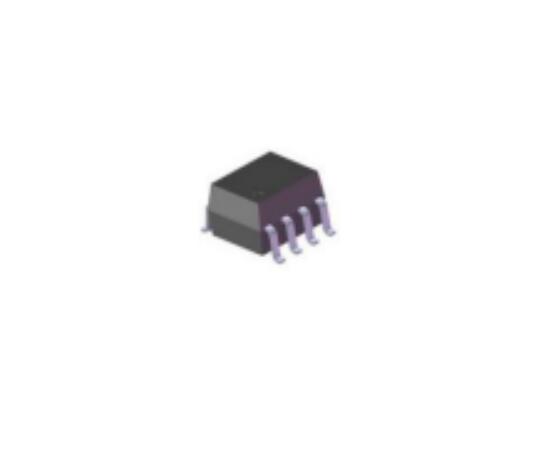

Optocoupler - ICPL-075L
+3.3V and +5V CMOS compatibility
40 ns max. pulse width distortion
30 ns max. propagation delay skew
High speed: 15 MBd minimum
10kV/µs minimum common mode rejection
Temperature range from -40°C to 105°C
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
The ICPL-075L (dual-channel) is a 15MBd CMOS optocoupler in SOIC-8 package. The optocoupler utilizes new CMOS IC technology to achieve excellent performance with very low power consumption. The basic components of the ICPL-075L are a high-speed LED and a CMOS detector IC. Each detector includes an integrated photodiode, a high-speed transimpedance amplifier, and a voltage comparator with an output driver.
1. Optocoupler -Features of ICPL-075L:
+3.3V and +5V CMOS compatibility
40 ns max. pulse width distortion
30 ns max. propagation delay skew
High speed: 15 MBd minimum
10kV/µs minimum common mode rejection
Temperature range from -40°C to 105°C
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -Applications of ICPL-075L:
Digital fieldbus isolation
CANBus，RS485，USB
Multiplexed data transmission
Computer peripheral interface
Microprocessor system interface
DC-DC converters
