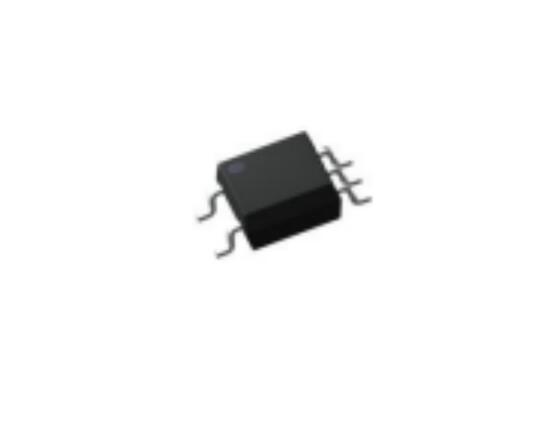

Optocoupler - ICPL-155E
Operating temperature range: -40°C to +105°C
200ns maximum propagation delay
Common mode transient immunity: ±20 kV/us (minimum)
Propagation delay skew: ±85ns (maximum)
Isolation voltage: 3750 Vrms (minimum)
Regulatory approvals (pending approval):
-UL - UL1577
-VDE - EN60747-5-5 VDE0884-5
-CQC - GB4943.1
Product Introduction
ICPL-155E consists of a GaAIAs infrared emitting diode and an integrated high-gain, high-speed photodetector. ICPL-155E is packaged in SOP5. The photodetector has an internal Faraday shield, providing guaranteed common mode transient immunity of ±20 kV/us. ICPL-155E is suitable for direct gate drive circuits of IGBTs or power MOSFETs.
1. Features of Optocoupler - ICPL-155E:
Operating temperature range: -40°C to +105°C
200ns maximum propagation delay
Common mode transient immunity: ±20 kV/us (minimum)
Propagation delay skew: ±85ns (maximum)
Isolation voltage: 3750 Vrms (minimum)
Regulatory approvals (pending approval):
-UL - UL1577
-VDE - EN60747-5-5 VDE0884-5
-CQC - GB4943.1
2. Optocoupler -Applications of ICPL-155E:
Plasma Display Panels (PDP)
Transistor Inverters
MOSFET Gate Drivers
IGBT Gate Drivers
