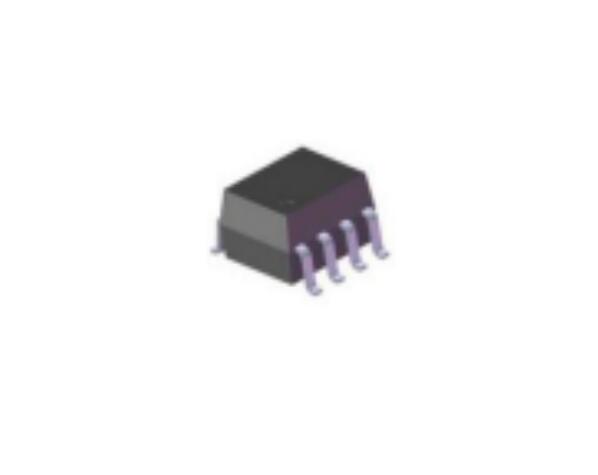

Optocoupler - ICPL-227
High isolation 3750 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
The ICPL-227 series combines an aluminum gallium arsenide infrared emitting diode as the emitter, optically coupled to a silicon planar phototransistor detector in a plastic SO8 package, with different lead forming options.
The ICPL-227 series features a robust coplanar dual-mold structure with stable isolation characteristics.
1. Optocoupler -ICPL-227 Features:
High isolation 3750 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -ICPL-227 Applications:
Switching mode power supplies
Programmable regulators
Home appliances
Office equipment
