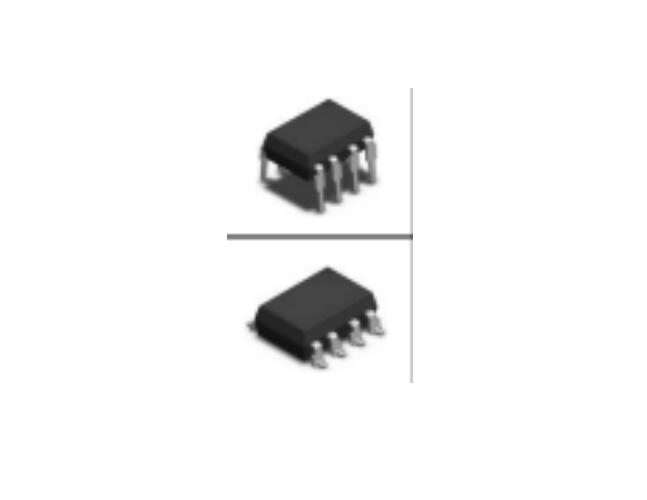

Optocoupler - ICPL-270X
Low nonlinearity: 0.01%
K3 (IPD2/IPD1) transfer gain: ±15%/5%
High isolation voltage between input and output (VISO=5000 Vrms)
Meets reinforced insulation standards
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
The ICPL-2700 and ICPL-2701 devices are highly linear analog optocouplers consisting of a gallium arsenide infrared light-emitting diode and two photodiodes. One photodiode is used for detection and feedback, thereby adjusting and stabilizing the LED's light output intensity, and achieving linear isolation for the other photodiode.
1. Optocoupler -Features of ICPL-270X:
Low nonlinearity: 0.01%
K3 (IPD2/IPD1) transfer gain: ±15%/5%
High isolation voltage between input and output (VISO=5000 Vrms)
Meets reinforced insulation standards
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -Applications of ICPL-270X:
Switching power supplies, smart meters
Industrial control, measuring instruments
Office equipment such as copiers
Home appliances: such as air conditioners, fans, water heaters, etc.
