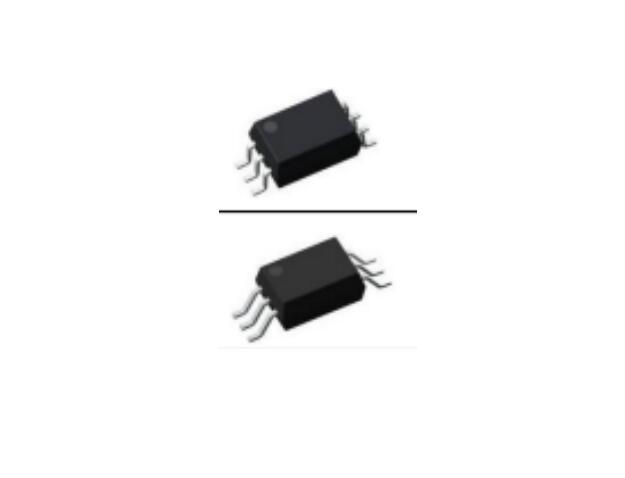

Optocoupler - ICPL-314
1A large peak output current
Rail-to-rail output voltage
Maximum propagation delay time of 110 ns
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 10 to 30 V (VCC)
Guaranteed performance over temperature -40°C to +110°C
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
The ICPL-314 series optocouplers are ideal for driving inverters and MOSFETs in motor control inverters and power systems. They consist of an LED optically coupled to an integrated circuit with a power output stage.
The optocoupler guarantees its operating parameters over the temperature range of -40°C to +110°C.
I. Optocoupler -Features of ICPL-314:
1A large peak output current
Rail-to-rail output voltage
Maximum propagation delay time of 110 ns
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 10 to 30 V (VCC)
Guaranteed performance over temperature -40°C to +110°C
Regulatory approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
II. Optocoupler -Applications of ICPL-314:
Isolated IGBT/power MOSFET gate drivers
Industrial inverters
AC brushless motor and DC motor drives
Induction heating
