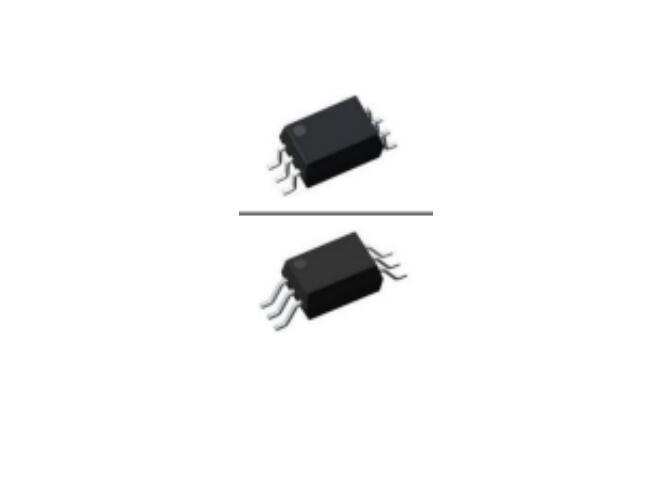

Optocoupler - ICPL-341
Large peak output current of 3.0 A
Rail-to-rail output voltage
Maximum propagation delay time of 110 ns
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 15 to 30 V (VCC)
Guaranteed performance over temperature -40°C to +110°C
Regulatory Approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
The ICPL-341 series optocoupler is ideal for driving motor control inverters and MOSFET inverters in power systems. It contains an LED optically coupled to an integrated circuit with a power output stage.
The 3.0A peak output current can directly drive most IGBTs rated up to 1200 V/200 A. For IGBTs with higher ratings, the ICPL-341 series can be used to drive discrete power stages that drive the IGBT gate.
The optocoupler guarantees its operating parameters over the temperature range of -40°C to +110°C.
I. Optocoupler -Features of ICPL-341:
Large peak output current of 3.0 A
Rail-to-rail output voltage
Maximum propagation delay time of 110 ns
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 15 to 30 V (VCC)
Guaranteed performance over temperature -40°C to +110°C
Regulatory Approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
II. Optocoupler -Applications of ICPL-341:
IGBT/MOSFET gate drivers
Uninterruptible power supplies (UPS)
Industrial inverters
AC/Brushless DC motor drives
Switching power supply suppliers
