Product Introduction

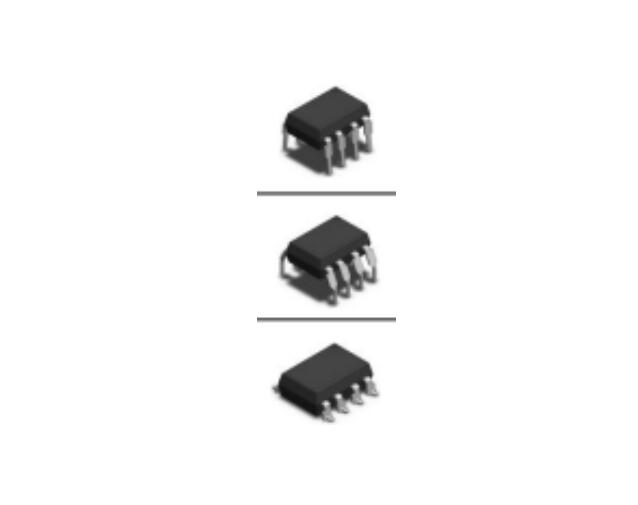

The ICPL-450X series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a silicon high-speed phototransistor in a plastic DIP8 package, with different lead forming options.
The separate design between the photodiode and transistor reduces the base-collector capacitance of the input transistor, which increases the speed by several orders of magnitude compared to traditional phototransistor optocouplers.
1. Optocoupler -Features of ICPL-450X:
High isolation 5000 VRMS
DC input with transistor output
Operating temperature range -40°C to 100°C
RoHS & REACH compliant
Halogen-free (optional)
MSL Class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -ICPL-45Applications of 0X:
Line receivers
Telecommunications equipment
Interface to CMOS-LSTTL-TTL
Wide bandwidth analog coupling
Pulse transformer replacement
Computer peripheral interfaces
