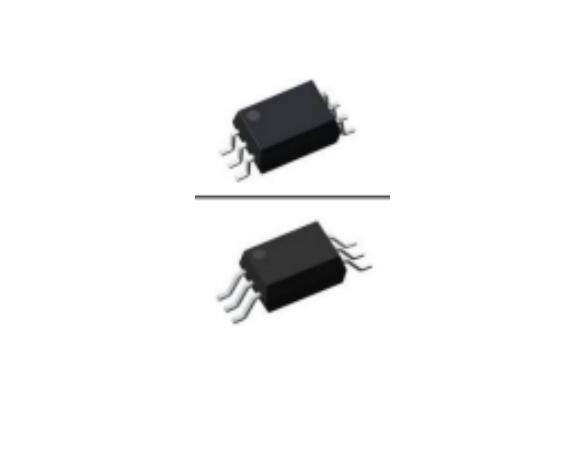

Optocoupler - ICPL-481
Inverter Logic Type (Totem Pole Output)
Truth Table Guaranteed: VCC from 4.5V to 30V
Performance specified for general-purpose IPM applications over industrial temperature range.
Short maximum propagation delay
Minimum pulse width distortion (PWD)
Very high common mode rejection (CMR)
Hysteresis
Regulatory Approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction
The ICPL-481 series high-speed optocoupler consists of an LED and a photodetector with a built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull-up resistor and allows direct driving of smart power modules or gate drivers. Minimizing propagation delay differences between devices makes these optocouplers an excellent solution for improving inverter efficiency by reducing switching dead time.
1. Optocoupler -Features of ICPL-481:
Inverter Logic Type (Totem Pole Output)
Truth Table Guaranteed: VCC from 4.5V to 30V
Performance specified for general-purpose IPM applications over industrial temperature range.
Short maximum propagation delay
Minimum pulse width distortion (PWD)
Very high common mode rejection (CMR)
Hysteresis
Regulatory Approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
2. Optocoupler -Applications of ICPL-481:
IPM interface isolation
Isolated IGBT/MOSFET gate drivers
AC and brushless DC motor drives
Industrial inverters
