Optocoupler - ICPL-815
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
Product Introduction

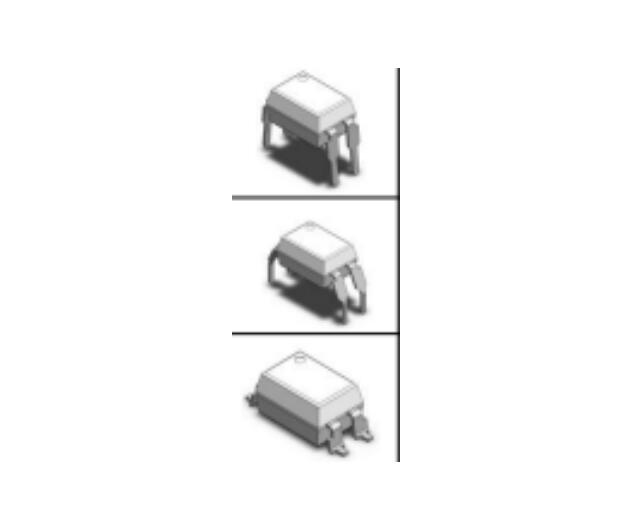

The ICPL-815 series combines an aluminum gallium arsenide infrared emitting diode as the emitter, optically coupled to a silicon planar Darlington phototransistor detector in a plastic DIP4 package, with different lead forming options.
The ICPL-815 series features a robust coplanar dual-mold structure with stable isolation characteristics.
I. Optocoupler -Features of ICPL-815:
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC - GB4943.1
II. Optocoupler -Applications of ICPL-815:
Sequence controllers
Telephones/fax machines
System appliances, measuring instruments
Programmable logic controllers
