Optocoupler - ICPL-816
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC – GB4943.1
Product Introduction

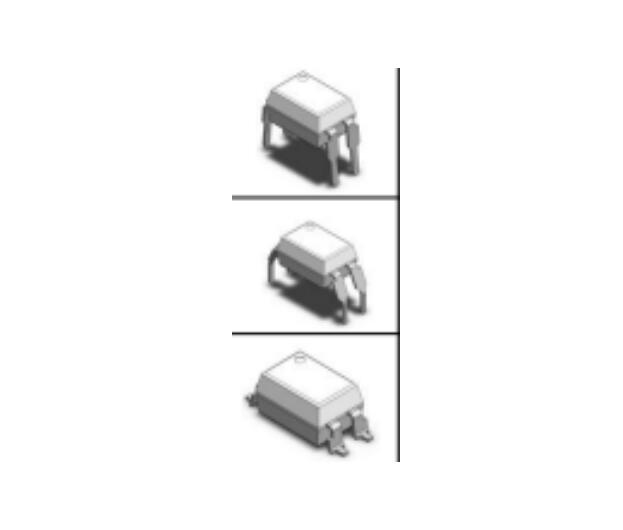

The ICPL-816 series combines an aluminum gallium arsenide infrared emitting diode as the emitter, optically coupled to a silicon planar phototransistor detector in a plastic DIP4 package with different lead forming options.
The ICPL-816 series features a robust coplanar dual-mold structure with stable isolation characteristics.
1. Optocoupler -Features of ICPL-816:
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -40°C to 110°C
REACH compliant
Halogen-free (technical)
MSL class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5(VDE0884-5)
-CQC – GB4943.1
2. Optocoupler -Applications of ICPL-816:
Switching mode power supplies
Programmable regulators
Home appliances
Office equipment
