Optocoupler - MPC101X
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -55°C to 110°C
RoHS & REACH compliant
MSL Class 1
Product Introduction

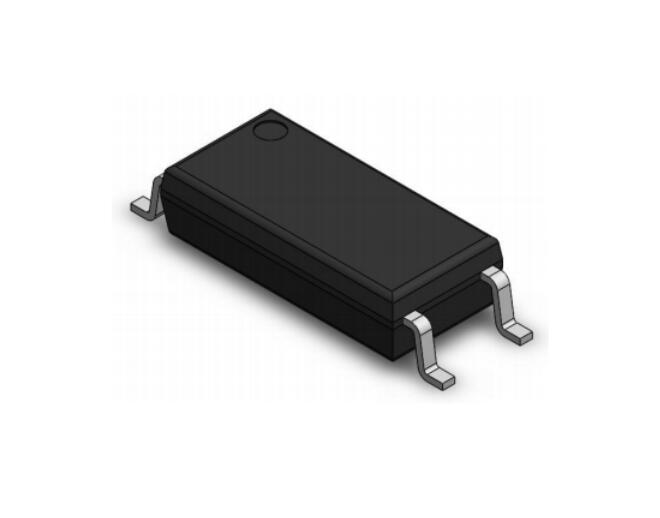

MPC101XThe series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a silicon planar phototransistor detector in a plastic LSOP4 package, with different lead forming options.
The MPC101X series features a robust coplanar dual-mold structure, providingmorestable isolation characteristics.
1.Optocoupler- Features of MPC101X:
High isolation 5000 VRMS
CTR flexibility available, see ordering information
DC input with transistor output
Operating temperature range -55°C to 110°C
RoHS & REACH compliant
MSL Class 1
Regulatory Approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1, GB8898
2. Optocoupler -Applications of MPC101X:
Switching Mode Power Supplies
Programmable Regulators
Home Appliances
Office Equipment
