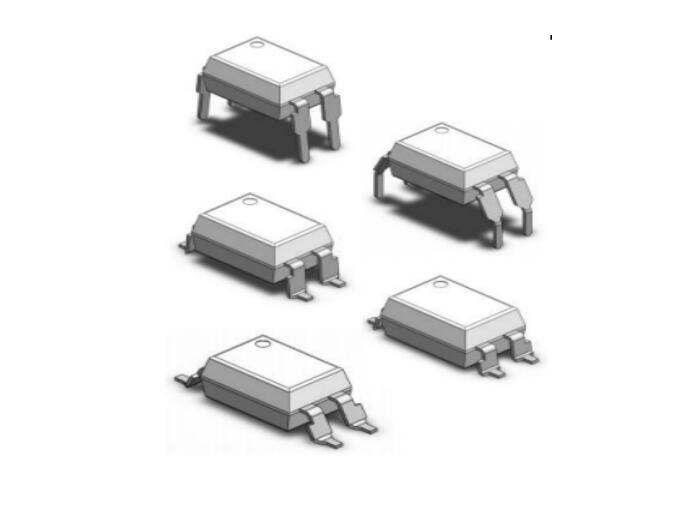

Product Introduction
The MPC301X-4L, MPC302X-4L, MPC305X-4L, and MPC307X-4L series use an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a monolithic random-phase silicon phototransistor.
With a robust coplanar dual-mold structure,the MPC301X-4L, MPC302X-4L, MPC305X-4L, and MPC307X-4L series providemorestable isolation performance.
I. Features of Optocoupler -MPC30XX-4L:
High isolation 5000 VRMS
DC input with random-phase phototransistor output
Operating temperature range -40°C to 100°C
REACH compliant
Halogen-free; halogen-free (technical)
MSL class 1
Regulatory Approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1, GB8898
II. Applications of Optocoupler -MPC30XX-4L:
Solenoid valve control
Lighting control
Motor control
Temperature control
Static AC power switching
Solid-state relays
