Product Introduction

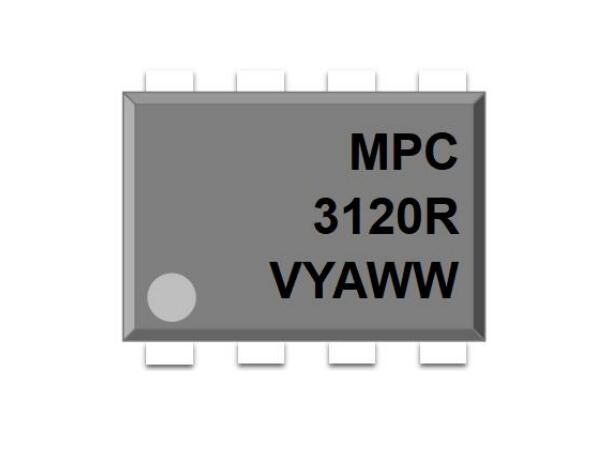

The MPC3120R series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is paired with an integrated circuit with a power output stage in a plastic DIP8 package with different lead forming options.
1. Optocoupler -Features of MPC3120R:
High isolation 5000 VRMS
DC input with a high-speed driver
Operating temperature range -40°C to 100°C
Rail-to-rail output
REACH & RoHS compliant
Halogen-free (optional)
MSL class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5
-CQC – GB4943.1, GB8898
2. Optocoupler -Applications of MPC3120R:
IGBT/MOSFET gate drivers
Uninterruptible power supplies
Industrial inverters
AC/brushless DC motor drives
Switching power supply suppliers
