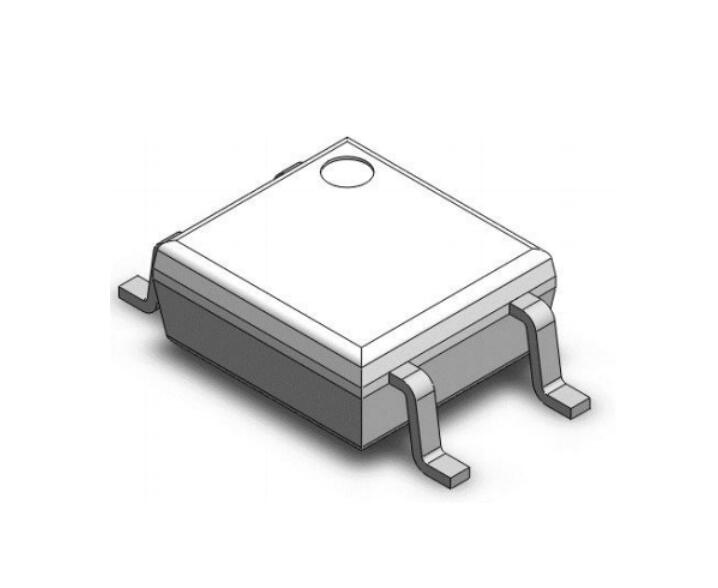

Optocoupler MPC354 - High Isolation Coupler MPC354
High isolation 3750 VRMS
CTR flexibility available, see ordering information
AC input with transistor output
Operating temperature range -55°C to 110°C
REACH compliant
Halogen-free; halogen-free (technical)
MSL class 1
Product Introduction
The optocoupler MPC354 series features two aluminum gallium arsenide infrared emitting diodes as AC input, optically coupled to a silicon planar phototransistor detector in a plastic SOP4 package, with different lead forming options.
MPC354The series has a robust coplanar dual-mold structure withmorestable isolation characteristics.
I.Optocouplers - Features of MPC354:
High isolation 3750 VRMS
CTR flexibility available, see ordering information
AC input with transistor output
Operating temperature range -55°C to 110°C
REACH compliant
Halogen-free; halogen-free (technical)
MSL class 1
Regulatory Approvals:
-UL - UL1577
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1, GB8898
II. Optocoupler -Applications of MPC354:
AC line monitors
Programmable logic controllers
Telephone line interfaces
System equipment
Measuring instruments
