Optocoupler - MPCM501
High isolation 3750 VRMS
DC input with high-speed transistor
Operating temperature range -55°C to 100°C
REACH compliant
Halogen-free; halogen-free (technical)
MSL class 1
Product Introduction

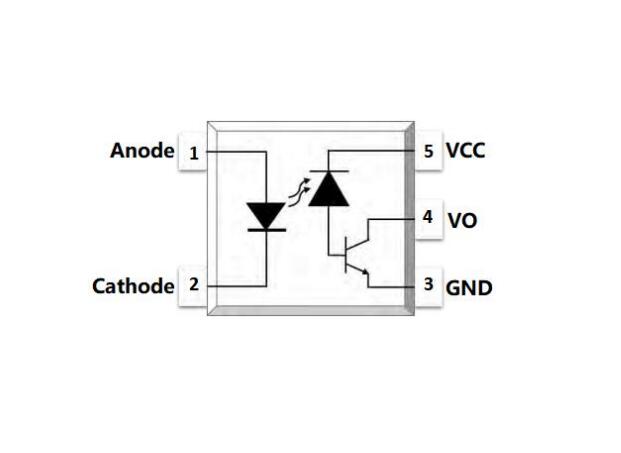

The MPCM501 series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a silicon high-speed phototransistor in a plastic SOP5 package. The MPCM501 series features a robust coplanar dual-mold structure withmorestable isolation characteristics.
I. Optocoupler -Features of MPCM501:
High isolation 3750 VRMS
DC input with high-speed transistor
Operating temperature range -55°C to 100°C
REACH compliant
Halogen-free; halogen-free (technical)
MSL class 1
Regulatory Approvals
-UL - UL1577 (Pending Approved)
-VDE - EN60747-5-5(VDE0884-5)
-CQC – GB4943.1, GB8898
II. Optocoupler -Applications of MPCM501:
Line receivers
Telecommunications equipment
Interface to CMOS-LSTTL-TTL
Wide bandwidth analog coupling
Pulse transformer replacement
Computer peripheral interfaces
