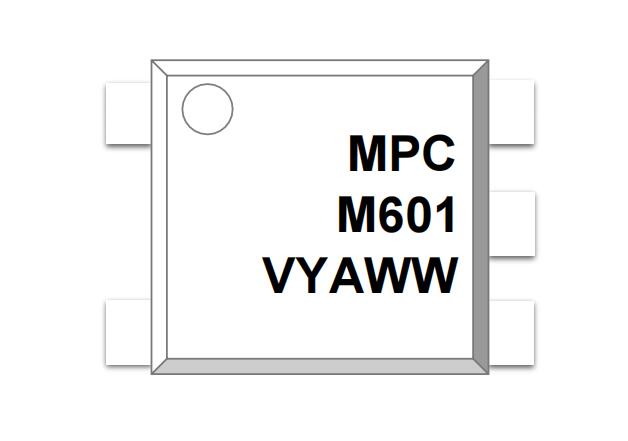

Optocoupler - MPCM601
High isolation 3750 VRMS
DC input with logic gate output
Operating temperature range -55°C to 100°C
REACH compliant
Halogen-free (technology)
MSL Class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5（VDE0884-5）
-CQC – GB4943.1, GB8898
Product Introduction
The MPCM601 series combines an aluminum gallium arsenide infrared emitting diode as the emitter, which is optically coupled to a silicon high-speed integrated photodetector logic gate and a frequency output in a plastic SOP5 package.
The MPCM601 series features a robust coplanar dual-mold structure with stable isolation characteristics.
1. Optocoupler -Features of MPCM601:
High isolation 3750 VRMS
DC input with logic gate output
Operating temperature range -55°C to 100°C
REACH compliant
Halogen-free (technology)
MSL Class 1
Regulatory approvals
-UL - UL1577
-VDE-EN60747-5-5（VDE0884-5）
-CQC – GB4943.1, GB8898
2. Optocoupler -Applications of MPCM601:
Ground loop elimination
LSTTL to TTL, LSTTL or CMOS
Line receivers, data transmission
Data multiplexing
Switching power supplies
Pulse transformer replacement
Computer peripheral interfaces
