Product Introduction

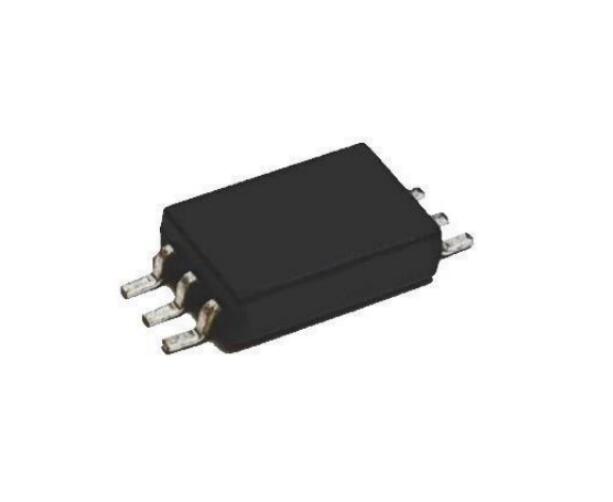

The MPH-314 series optocoupler is ideal for driving power inverters and inverters and MOSFETs used in motor control. It contains an LED optically coupled to an integrated circuit with a power output stage. The optocoupler guarantees its operating parameters over the temperature range of -40°C to +110°C.
1. Optocoupler -MPH-314 Features:
1.0AMaximumpeak output current
Rail-to-rail output voltage
110nsMaximumMaximum propagation delay
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 10 to 30V (VCC)
Guaranteed performance over -40°C to +110°C
MSL class 1
Regulatory approvals (pending approval)
-UL - UL1577
-VDE - EN60747-5-5
-CQC – GB4943.1, GB8898
2. Optocoupler -MPH-314 Applications:
Isolated IGBT/power MOSFET gate drivers
Industrial inverters
AC/brushless DC motor drives
Induction heating
