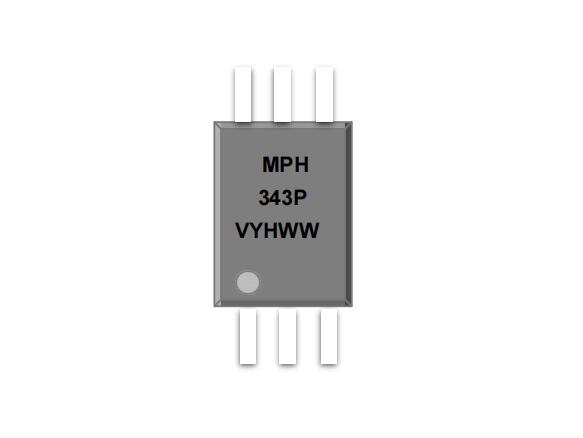

Optocoupler - MPH343
4.0 A maximum peak output current
Rail-to-rail output voltage
110ns maximum propagation delay
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 10 to 30 volts (VCC)
Guaranteed performance over temperature -40°C to +110°C.
MSL Class 1
Regulatory Approvals
-UL - UL1577
-VDE-EN60747-5-5
-CQC – GB4943.1-2011
Product Introduction
The MPH343 series optocouplers are ideal for driving power IGBTs and MOSFETs in motor control inverter applications and inverters in power systems. It contains an aluminum gallium arsenide LED optically coupled to an integrated circuit with a power output stage.
The 4.0A peak output current can directly drive most IGBTs rated up to 1200 V/200 A. For higher-rated IGBTs, the MPH-343 series can be used to drive discrete power stages that drive the IGBT gate. The optocoupler guarantees its operating parameters over the temperature range of -40°C to +110°C.
I. Optocoupler -Features of MPH343:
4.0 A maximum peak output current
Rail-to-rail output voltage
110ns maximum propagation delay
Under-voltage lockout (UVLO) with hysteresis
Wide operating range: 10 to 30 volts (VCC)
Guaranteed performance over temperature -40°C to +110°C.
MSL Class 1
Regulatory Approvals
-UL - UL1577
-VDE-EN60747-5-5
-CQC – GB4943.1-2011
II. Optocoupler -Applications of MPH343:
IGBT/MOSFET gate drivers
Uninterruptible power supplies (UPS)
Industrial inverters
AC/brushless DC motor drives
Switching power supply suppliers
