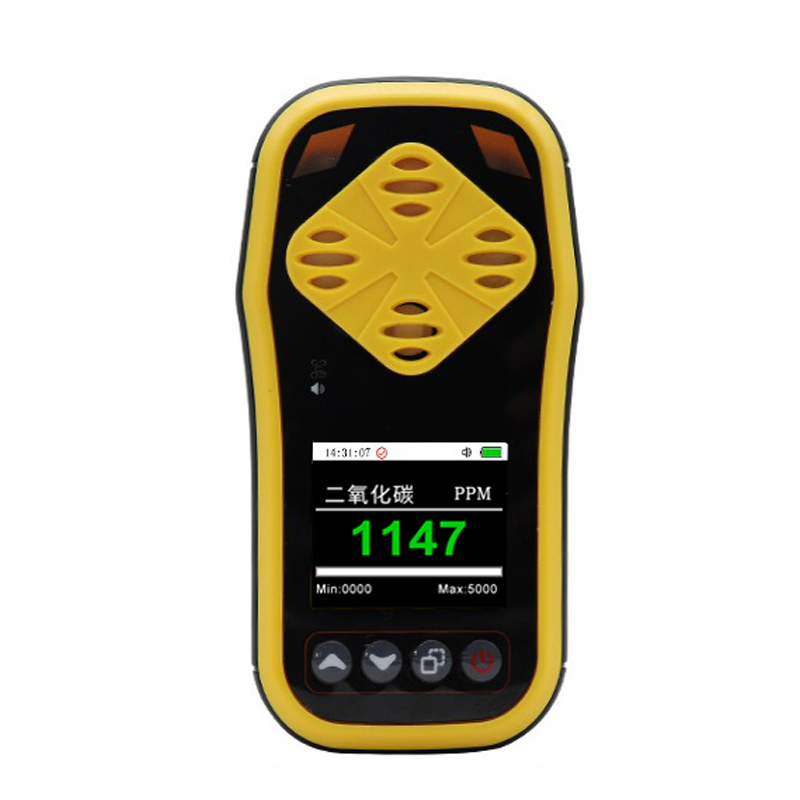

Product Introduction
It uses an electrochemical gas sensor and is based on the principle of natural diffusion gas detection. The device has excellent sensitivity and outstanding repeatability.
Full-function self-test, adjustable high and low alarm thresholds, three-level alarm with sound, light, and vibration, and shortcut keys can quickly turn on/off the audible alarm and storage mode.
The device can store up to 100,000 monitoring data records, and historical data can be viewed at any time through the configuration software.
The monitor housing is made of high-strength engineering plastic and composite anti-slip rubber, featuring high strength, a good hand feel, and is waterproof and dustproof.
| Detection gas | Ozone (O3) |
| Detection range | 0~10.00ppm 0~100.0ppm |
| 分辨率 | 0~10ppm：0.01ppm 0~100ppm：0.1ppm |
| Repeatability | ≤2% |
| Zero Drift | ≤±1ppm |
| Accuracy | 0~10ppm：±6%FS（@5ppm、25℃、50%RH） 0~100ppm：±6%FS（@50ppm、25℃、50%RH） |
| Stability | ≤7% signal value/year |
| Response time | Diffusion type ≤60s |
| Insulation resistance | ≥20MΩ |
| Alarm function | Sound, light, vibration |
| Working Environment | Temperature -10℃-50℃; Humidity <95%RH without condensation |
| 工作电压 | DC3.7V (lithium battery capacity 3000mAh), Micro-B port power supply is 5VDC |
| Explosion-proof marking | Ex ib IIB T3 Gb |
| Charging time | 6h - 8h |
| Standby Time | More than 8h continuous |
Main Application Areas
- Water Treatment — Monitoring ozone levels in water purification and disinfection processes to ensure safe and effective treatment.
- Industrial Safety — Detecting ozone leaks in workplaces to protect workers from harmful exposure and comply with safety regulations.
- Food Processing — Controlling ozone concentrations used for sterilization and preservation in food and beverage production.
- Air Quality Monitoring — Measuring ambient ozone levels in indoor and outdoor environments for health and environmental compliance.
