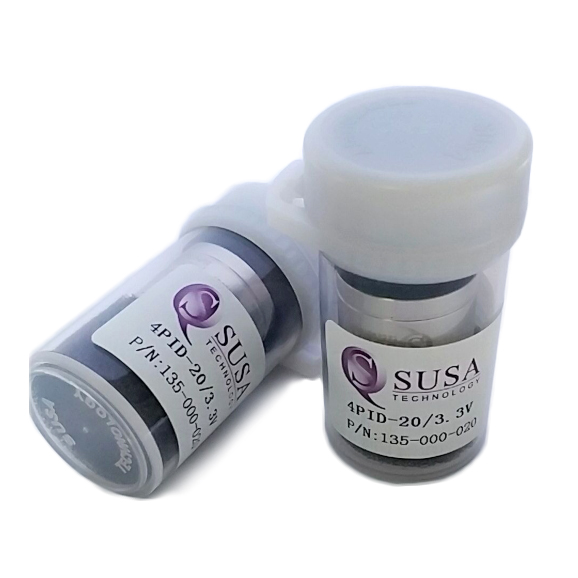

PID sensor TVOC detection photoionization sensor - 4PID-20-3.3V

1. PID sensor TVOC detection photoionization sensor 4PID-20-3.3V description:

A photoionization sensor composed of a vacuum ultraviolet lamp, high-sensitivity low-noise detection circuit, and miniature ionization chamber, capable of providing a detection range up to 10000ppm and a minimum detection limit of 0.1ppb. The standard 4-series compact design is convenient for application in various handheld portable, field fixed instruments, and also in multiple types of analytical instruments.

2. PID sensor TVOC detection photoionization sensor 4PID-20-3.3V features:

Extremely fast response speed

Extremely high resolution

3. PID sensor TVOC detection photoionization sensor 4PID-20-3.3V applications:

Most volatile organic compounds

Detection of some inorganic vapors

Environmental protection

Widely used in petrochemical and other fields

4. PID sensor TVOC detection photoionization sensor 4PID-20-3.3V parameters:

Basic characteristics
Working principle	Photoionization detector
Detection range	0~20ppm
Resolution	1ppb
Repeatability	<±2% (calibration point)
Operating temperature range	-40~50°C
Operating humidity range	0~99%RH (non-condensing)
Operating pressure range	800~1200 mbar
Electrical characteristics
Operating voltage	3.3±0.3V
Operating current	30~50mA
Output signal	0.05 V~input voltage
Safety certification	Pending
Lifetime
Recommended storage temperature	0~20℃
Normal service life	More than 36 months in air
UV lamp life	24 months
Warranty	12 months

5. PID sensor TVOC detection photoionization sensor 4PID-20-3.3V model selection:

Product classification & performance classification (10.6eV)-3.3V
Range	20ppm	100ppm	1000ppm	5000ppm	10000ppm
Part Number	135-000-020	135-000-120	135-000-130	135-000-530	135-000-140
Resolution	1ppb	5ppb	50ppb	100ppb	200ppb
Sensitivity	＞75mV/ppm	＞15mV/ppm	＞1.5mV/ppm	＞0.3mV/ppm	＞0.15mV/ppm
Response time (T90)	≤5second	≤5second	≤3second	≤3second	≤3second
