Product Introduction

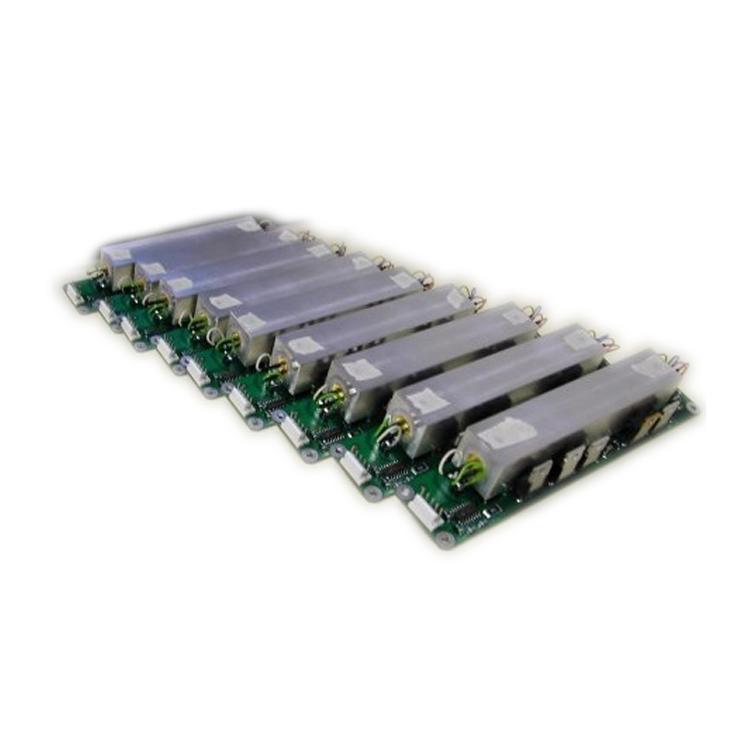

OEM refrigerant gas sensor for leak detection and measurement:
Detectable Gases:
| Sensor LS-1 |
R134a |
| Sensor LS-2 |
R22 |
| Sensor LS-3 |
CO2 |
| Sensor LS-4 |
R134, R404 , R407, R410 |
| Sensor LS-5 |
R134, R404 , R407, R410, R22 |
| Sensor LS-6 |
R600 , R290 , CH3OH , C6H6 , C7H8 , C8H10…… |
| Sensor LS-7 |
SF6 , NH3 |
| Sensor LS-8 |
CH4 |
| Sensor LS-9 |
CH2O |
Refrigerant Gas Leak Detection Specifications:
| Minimum Detectable Refrigerant Leak Rate |
R134a 0.3 (g/y) |
LS-1 |
| R22 0.5 (g/y) |
LS-2 |
|
| R404 0.2 (g/y) |
LS-4 |
|
| R407 0.6 (g/y) |
LS-4 |
|
| R410 0.8 (g/y) |
LS-4 |
|
| R600 0.6 (g/y) |
LS-6 |
|
| High Resolution Range |
0 -100 (g/y) Resolution: 0.1 g/y |
|
| Low Resolution Range |
0 -10000 (g/y) Resolution: 10 g/y |
|
| Response Time |
0.5-1.5 (seconds) |
(1) |
| Gas Flow (Typical) |
120sccm |
(2) |
| Power Supply |
+15/-15/0 V - 200 mA |
|
| Digital I/O |
RS232 |
(3) |
(1) Sensor response time can be set according to user requirements. Faster response time means lower accuracy.
(2) The flow rate for sensor parameters is factory-set. Different settings can be made according to requirements.
(3) Baud rate = 9600 (can be set by user), data bits = 8, parity = none, stop bits = 1.
Warm-up:
- Using the preheat resistor (typically 15V; 150 mA supply) for 2-5 minutes can improve the stability of the I.R. unit at normal ambient temperature (20°C). The appropriate warm-up time depends on the specific gas detector and environmental conditions.
- It is recommended to wait at least 30 minutes after the warm-up period before making precise measurements.
