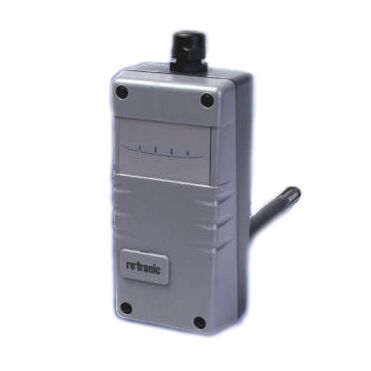

Swiss Rotronic Duct-Mounted Temperature and Humidity Transmitter M12W2HT-1X Parameters:
| M12W2HT-4X |
Wall-mounted temperature and humidity, two-wire system,4~20 mA, 0~100 %rh, -30~70℃ |
| Fixed probe duct temperature and humidity transmitter |
|
| 2x2 two-wire and 3/4 three-wire options available |
|
| Enclosure protection rating |
IP65 |
| Digital calibration, completed with handheld HygroPalm 3 |
|
| Typical Applications |
Pharmaceutical, textile, semiconductor industry, museums, archives, other indoor high-precision measurements |
| Sensors |
Hygromer® AC-1 ，Pt100 1/3DIN |
| Accuracy at 23°C |
±1.5%RH,±0.3℃ |
| Probe repeatability |
<0.5%RH,<0.1℃ |
| Probe long-term stability |
<0.5%RH,<0.1℃ |
| Probe response time |
<15 seconds (at 23°C, τ=63, 1m/s wind speed) |
| Probe protection |
SP-W15 |
| Wind speed |
20m/s |
| Probe calibration |
Adjusted with handheld instrument, HygroPlam 3 + ACRLXB5 |
| Operating conditions of the whole unit |
–40~60℃，0~100%RH |
| Power supply |
12~35VDC、12~24VAC |
| Analog output |
0~1V, 0~5V, 0~10V, 0~20mA, 4~20mA selectable |
| Load capacity |
Current output <250Ω, 2-wire 500Ω/24VDC,Voltage output >1000Ω |
| Protection rating |
IP65 |
| Weight |
300g |
| Dimensions |
Housing 154 x 73 x 48 mm, probe size 52 x 15mm Φ |
