Product Introduction

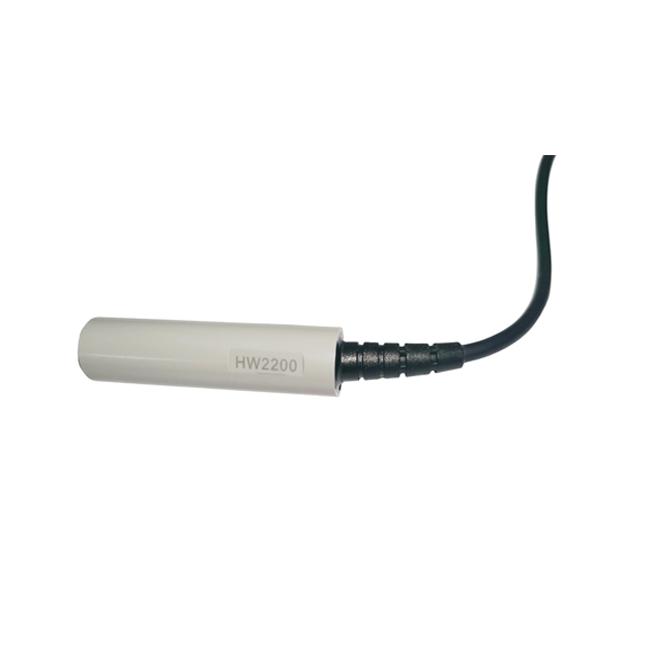

Korean Samyoung Humidity Sensor Probe HW2200 Description:
The HW2200 humidity sensor is based on the capacitive polymer RH sensor developed by Samyoung S&C, and is a humidity sensor designed specifically for OEM applications.
This sensor is widely used for reliable and precise measurements.
The sensor provides a linear voltage output through the module and can be directly interfaced with a microcontroller for communication.
Korean Samyoung Humidity Sensor ProbeHW2200Specifications:
The product is free of lead, chromium (6+), cadmium, and mercury.
Humidity is calibrated within +/-3% @55%RH.
Typical 1 to 3.6 VDC output for 0 to 100% RH.
5 VDC power supply.
Ratios voltage supply from 4.75Vdc to 5Vdc.
Korean Samyoung Humidity Sensor ProbeHW2200Features:
Fully interchangeable.
High reliability, long-term stability.
Extremely low temperature dependence.
Suitable for 3 ~ 10 VDC supply voltage.
Korean Samyoung Humidity Sensor ProbeHW2200Applications:
Industrial process control.

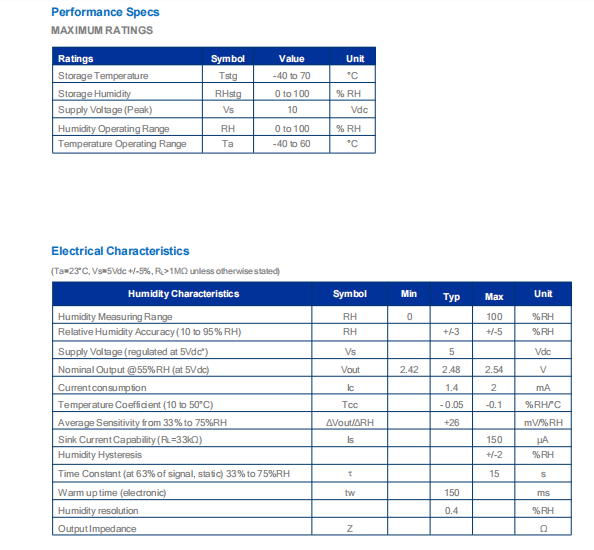

Korean Samyoung Humidity Sensor ProbeHW2200 Parameters:
