Product Introduction

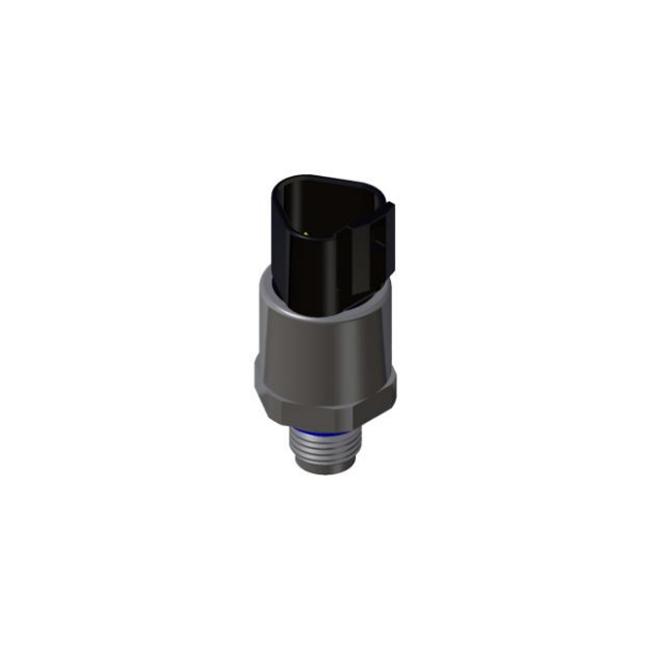

Korea Samyoung Industrial Pressure Sensor SY-IPS Series Description:
SYP-IPS is a pressure measurement module with 3-point temperature full compensation based on mature thick film resistor technology in the market. Suitable for high-pressure environments up to 0~350 bar, compliant with IEC61010 withstand voltage test standards.
SYP-IPS is suitable for heavy equipment, high-pressure hydraulic systems, hydrogen tanks, etc., ensuring reliable operation in harsh media such as hydraulic oil and hydrogen.
Korea SamyoungIndustrial Pressure Sensor SY-IPS Series Features:
• Analog voltage output
• Gauge pressure
• Reliable in harsh media
• Waterproof IP69
Korea SamyoungIndustrial Pressure Sensor SY-IPS Series Applications:
Industrial
• Heavy equipment
• Hydraulic systems
• Hydrogen tanks
Automotive
• Heavy equipment
• Hydraulic systems
• FCEV (hydrogen tanks)
Korea SamyoungIndustrial Pressure Sensor SY-IPS Series Parameters:
| Pressure |
|
| Measuring Range |
50/100/200/500 bar |
| Accuracy |
±0.75 %FS (@25℃) |
| Proof Pressure |
Detection Rage X 3 times |
| Burst Pressure |
Detection Rage X 5 times |
| Electrical Specifications |
|
| Supply Voltage |
8～30V DC |
| Current Consumption |
Max 10.0 mA |
| Voltage Output |
1.0～5.0V DC |
| Environmental Conditions |
|
| Operating Temperature |
- 40℃ ～125℃ |
| Storage Temperature |
- 40℃ ～125℃ |
| Dimensions (mm) |
⌀26×H69 Thread: G1/4 (BSPP) |
