Product Introduction

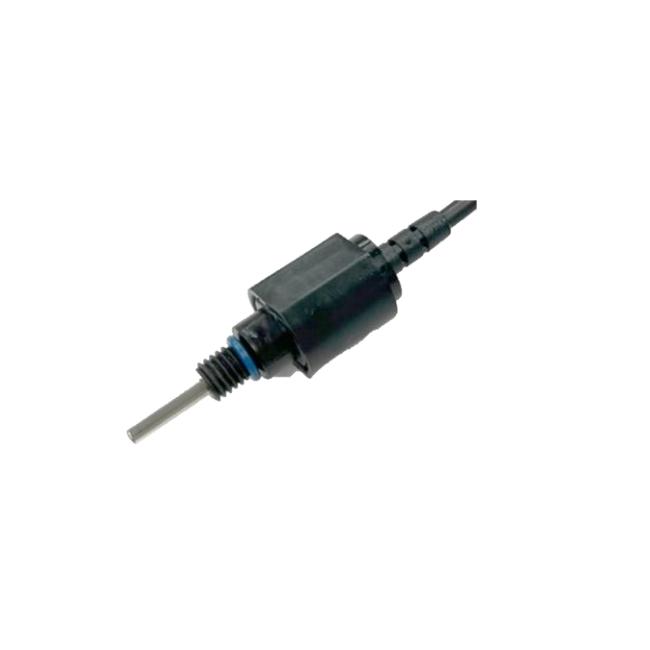

Korea Samyoung Pressure Temperature Sensor SY-PT Series Description:
SY-PT is a compact integrated sensor that measures pressure and temperature at once by applying absolute pressure element and NTC thermistor.
It can be applied to lightweight hydrogen fuel cell drones for long-distance flights, where maintaining precise pressure and temperature readings in the fuel cell is crucial for its efficiency, durability, and safety.
SY-PT is designed to measure fuel cell stack and thermal management coolant systems. Additionally, it is optimized to operate within the pressure and temperature ranges during fuel cell operation.
• Analog voltage output
• Absolute pressure
• Fuel cell integrated sensor
Korea Samyoung Pressure Temperature Sensor SY-PT Series Applications:
Industrial
• Fuel cell systems (drones)
• Thermal management systems (coolant)
Automotive
• Fuel cell systems
• Thermal management systems (coolant)
Korea Samyoung Pressure Temperature Sensor SY-PT Series Parameters:
| Pressure |
|
| Measurement Range |
0.2-3.0 bar |
| Accuracy |
±1.8 %FS |
| Proof Pressure |
5 V DC |
| Burst Pressure |
0.4 ~4.65 V |
| Current Consumption |
12 mA |
| NTC Resistance (@25℃) |
10 kΩ±1% |
| NTC B (25/85) |
3,435 K±1% |
| Temperature Response Time |
3.5 Sec (25/85) |
| Operating Temperature |
- 40℃ ～120℃ |
| Storage Temperature |
- 40℃ ～100℃ |
| Measurement Temperature |
- 40℃ ～120℃ |
