Product Introduction

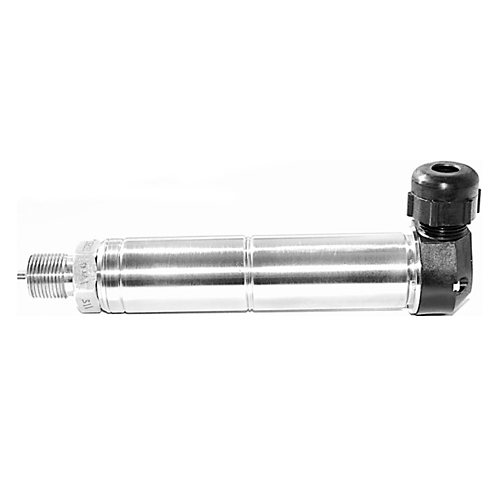

1. Description of Sapphire Silicon Pressure Transmitter MIDA-SG-12-11-H
Sapphire Silicon Pressure TransmitterMIDA-SG-12-11-H is based on Russia's advanced titanium/silicon-sapphire pressure sensor and transmitter circuit. It features wide pressure range, wide temperature range, high stability, wear resistance, impact resistance and corrosion resistance. It can work in cold regions and high-temperature areas for long periods.
2. Features of Sapphire Silicon Pressure Transmitter MIDA-SG-12-11-H
Standard range: 0 - 160 MPa
Operating temperature range: -40°C...+150°C (+200)
Electronics ambient temperature -40°C...+80°C
Accuracy not exceeding: ±0.25%; ±0.5%
Supply voltage: 12...36
Protection rating: IP64
3. Specifications of Sapphire Silicon Pressure Transmitter MIDA-SG-12-11-H
| Applications |
Industrial automation instruments, process and measurement control systems for high-temperature liquids and gases |
| Measuring medium |
High-temperature liquids and gases compatible with titanium alloy and stainless steel |
| Standard range, MPa |
0-0,01… - 0-160 |
| Output signal (wiring) |
4-20 mA (2-wire) |
| Operating temperature, °C |
-40 ... +150(+200) - for A-zone; |
| Compensated temperature range of output, °C |
+20 ... +200 |
| Overall accuracy in compensated temperature range, not exceeding ±% |
1,0 |
| Accuracy (comb. L.H.R), not exceeding ±% |
0,25; 0,5 |
| Supply voltage, V |
12 ... 36 depending on load resistance |
| Current consumption, not exceeding mA |
20,2 |
| Type and intrinsic safety marking |
0ExiaIICT3 |
| Protection rating |
IP64 |
| Climatic version |
UHL**3.1 |
| Mechanical stability |
V3 |
| Electrical connection |
Sealing gland straight (S) and angle (A); plug/socket (P) |
| Pressure port |
М20 x 1,5; М12 x 1,5 (up to 50 MPa) |
| Weight, not exceeding, kg |
0,4 |
| Specifications |
ТУ4212-043-18004487-2003 |
| State Register number of measuring devices of the Russian Federation |
17635-03 |
