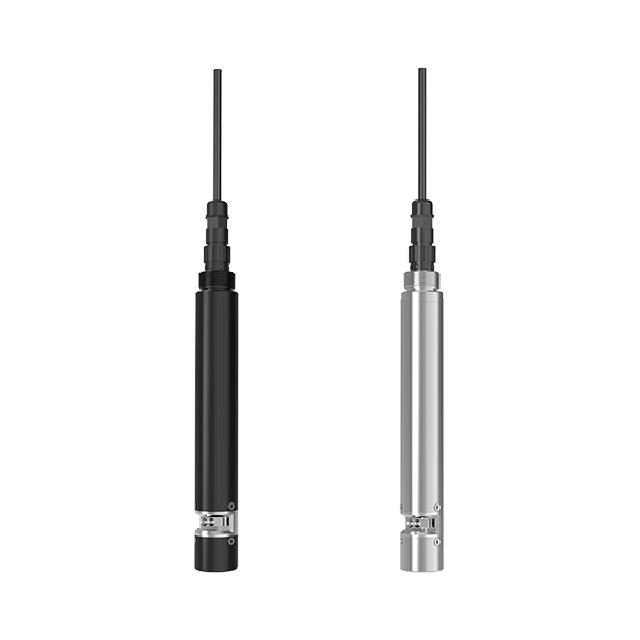

Product Introduction
COD measurement range 0~500mg/L, turbidity measurement range 0~200NTU.
Adopts modulated light signal to reduce visible light interference.
Dual optical path measurement compensates for the impact of turbidity on COD measurement.
Internally integrated self-cleaning system effectively prevents biological fouling.
The device adopts wide voltage power supply, DC 9~30V.
485 type:
| Power supply | DC 9~30V | |
| Power consumption | ≤0.8W (normal); ≤1.5W (when self-cleaning system is working) | |
| Communication interface | RS485; standard MODBUS-RTU protocol; communication baud rate: default 4800 (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 configurable) | |
| Measurement principle | Dual-wavelength ultraviolet absorption method | |
| Measurement Range | COD | Turbidity |
| 0~500mg/L equiv.KHP | 0~200NTU | |
| Measurement Error | COD | Turbidity |
| ±5%FS equiv.KHP（25℃） | ±5%FS（25℃） | |
| Measurement resolution | COD | Turbidity |
| 0.1mg/L | 0.1NTU | |
| Temperature Resolution | 0.1℃ | |
| Temperature error | ±0.5℃ | |
| Repeatability | ±1%FS equiv.KHP（25℃） | |
| Response time | ≤20sec | |
| Equipment working conditions | 0~40℃ | |
| Waterproof rating | IP68 | |
| Flow rate | <3m/s | |
| Withstand Pressure | ＜0.1MPa | |
| Electrode cable length | Default 5m, customizable | |
| Housing material | Corrosion-resistant plastic, stainless steel | |
| Recommended maintenance and calibration frequency | 3 months | |
| Self-cleaning system lifespan | 18 months | |
4G type:
| Power supply | DC9~30V | |
| Power consumption | ≤1W (normal); ≤1.7W (when self-cleaning system is working) | |
| Upload method | 4G | |
| Measurement principle | Dual-wavelength ultraviolet absorption method | |
| Measurement Range | COD | Turbidity |
| 0~500mg/L equiv.KHP | 0~200NTU | |
| Measurement Error | COD | Turbidity |
| ±5%FS equiv.KHP（25℃） | ±5%FS（25℃） | |
| Measurement resolution | COD | Turbidity |
| 0.1mg/L | 0.1NTU | |
| Temperature Resolution | 0.1℃ | |
| Temperature error | ±0.5℃ | |
| Repeatability | ±1%FS equiv.KHP（25℃） | |
| Response time | ≤20sec | |
| Equipment working conditions | Probe: 0~40℃ Wang character shell: -40℃~60℃, 0%RH~95%RH (non-condensing) |
|
| Waterproof rating | Probe: IP68 Wang character shell: IP65 | |
| Flow rate | <3m/s | |
| Probe pressure resistance | ＜0.1MPa | |
| Data upload time | Default 60s/time, 1s~65535s configurable | |
| Data collection time | 2s/time | |
| Electrode cable length | Default 5m, customizable | |
| Housing material | Corrosion-resistant plastic, stainless steel | |
| Recommended maintenance and calibration frequency | 3 months | |
| Self-cleaning system lifespan | 18 months | |
Ethernet type:
| Power supply | DC9~30V | |
| Power consumption | ≤1W (normal); ≤1.7W (when self-cleaning system is working) | |
| Upload method | ETH | |
| Measurement principle | Dual-wavelength ultraviolet absorption method | |
| Measurement Range | COD | Turbidity |
| 0~500mg/L equiv.KHP | 0~200NTU | |
| Measurement Error | COD | Turbidity |
| ±5%FS equiv.KHP（25℃） | ±5%FS（25℃） | |
| Measurement resolution | COD | Turbidity |
| 0.1mg/L | 0.1NTU | |
| Temperature Resolution | 0.1℃ | |
| Temperature error | ±0.5℃ | |
| Repeatability | ±1%FS equiv.KHP（25℃） | |
| Response time | ≤20sec | |
| Equipment working conditions | Probe: 0~40℃ Wang character shell: -40℃~60℃, 0%RH~95%RH (non-condensing) |
|
| Waterproof rating | Probe: IP68 Wang character shell: IP65 | |
| Flow rate | <3m/s | |
| Probe pressure resistance | ＜0.1MPa | |
| Communication interface | RJ45 network port, TCP data upload, supports static IP address, DHCP automatic IP address acquisition, supports cross-gateway, DNS domain name resolution | |
| Data upload interval | Default 30s (1s~60000s configurable) | |
| Electrode cable length | Default 5m, customizable | |
| Housing material | Corrosion-resistant plastic, stainless steel | |
| Recommended maintenance and calibration frequency | 3 months | |
| Self-cleaning system lifespan | 18 months | |
WIFI type:
| Power supply | DC 9~30V | |
| Power consumption | ≤1W (normal); ≤1.7W (when self-cleaning system is working) | |
| Upload method | WIFI | |
| Measurement principle | Dual-wavelength ultraviolet absorption method | |
| Measurement Range | COD | Turbidity |
| 0~500mg/L equiv.KHP | 0~200NTU | |
| Measurement Error | COD | Turbidity |
| ±5%FS equiv.KHP（25℃） | ±5%FS（25℃） | |
| Measurement resolution | COD | Turbidity |
| 0.1mg/L | 0.1NTU | |
| Temperature Resolution | 0.1℃ | |
| Temperature error | ±0.5℃ | |
| Repeatability | ±1%FS equiv.KHP（25℃） | |
| Response time | ≤20sec | |
| Equipment working conditions | Probe: 0~40℃ Wang character shell: -40℃~60℃, 0%RH~95%RH (non-condensing) |
|
| Waterproof rating | Probe: IP68 Wang character shell: IP65 | |
| Flow rate | <3m/s | |
| Probe pressure resistance | ＜0.1MPa | |
| Data upload time | Default 10s/time, 1s~65535s adjustable | |
| Data collection time | 2s/time | |
| WIFI communication parameters | 802.11b/g/n | |
| Security | Security mode WEP/WPA-PSK/WPA2-PSK Encryption type WEP/TKIP/AES | |
| Electrode cable length | Default 5m, customizable | |
| Housing material | Corrosion-resistant plastic, stainless steel | |
| Recommended maintenance and calibration frequency | 3 months | |
| Self-cleaning system lifespan | 18 months | |
