Italian Seneca Smart Temperature Transmitter (for Pt100 and Ni100 Probes) - T120
Accuracy class: 0.1%
Max resolution: 16-bit
Pt100 input: EN 60751/A2, -200 ~ +650°C, Min span 20°C
Ni100 input: -60 ~ +250°C, Min span 20°C
Output: 4-20, 20-4 mA, 2-wire
Power supply: 5-30 Vdc
Operating temperature: -40 ~ +85°C
Product Introduction

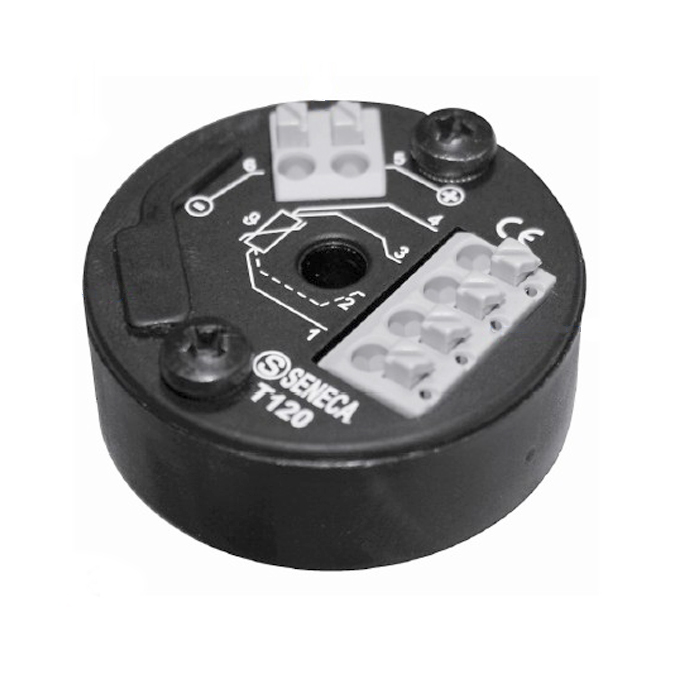

T120 Smart Temperature Transmitter Product Description:
T120 is a two-wire loop-powered smart temperature transmitter (for Pt100 and Ni100 probes). The input signal of the temperature transmitter can be arbitrarily set via a handheld programmer and computer (specially designed for integrated RTD temperature transmitters). It features small size, light weight, and easy installation. It converts the temperature parameter of the controlled object into an electrical signal, transmits it to display, recording, and regulating instruments, and performs detection, regulation, and control of the system. It can be directly installed in the junction box of general industrial RTDs and thermocouples, forming an integrated structure with the on-site sensing element.
T120 Smart Temperature Transmitter Features:
Accuracy class: 0.1%
Max resolution: 16-bit
Pt100 input: EN 60751/A2, -200 ~ +650°C, Min span 20°C
Ni100 input: -60 ~ +250°C, Min span 20°C
Wiring method: 2-wire, 3-wire, 4-wire
Process connection: spring terminals
Output: 4-20, 20-4 mA, 2-wire
Power supply: 5-30 Vdc
Operating temperature: -40 ~ +85°C
Software settings: start/full scale, interference (disturbance), RTD type, cable resistance, overload range, etc.
T120 Smart Temperature Transmitter Applications:
Widely used in industrial temperature measurement and process control in petroleum, chemical, chemical fiber, textile, rubber, building materials, electric power, metallurgy, pharmaceutical, food, and other industries.
