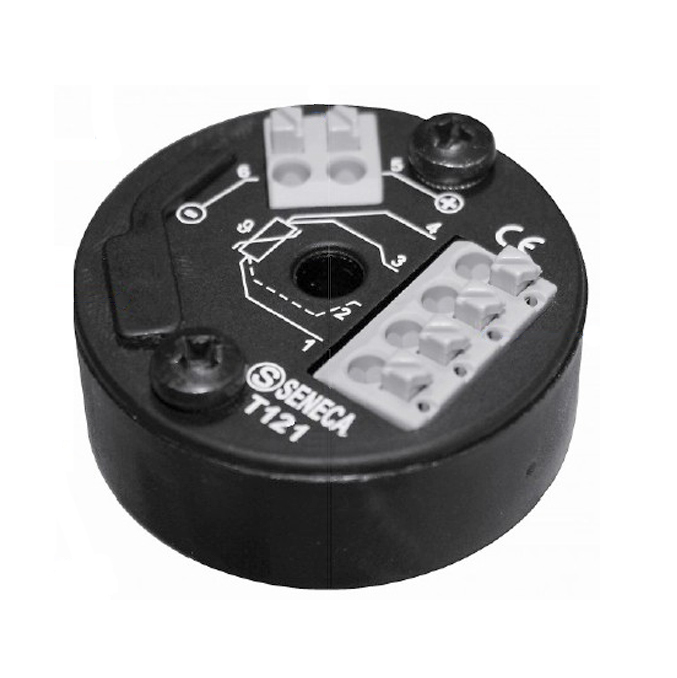

Italian Seneca Smart Temperature Transmitter - T121

T121 Smart Temperature Transmitter Product Description:
The T121 is an isolated two-wire loop-powered smart temperature transmitter. The input signal can be arbitrarily set via a handheld programmer or computer (specifically for integrated RTD/thermocouple temperature transmitters). It features compact size, light weight, and easy installation. It converts the temperature parameter of the controlled object into an electrical signal, transmits it to display, recording, and control instruments, and performs detection, regulation, and control of the system. It can be directly installed in the junction box of general industrial RTDs and thermocouples, forming an integrated structure with the field sensing element.

T121 Smart Temperature TransmitterFeatures:
Accuracy: 0.1% (RTD min 0.1°C, thermocouple min 1°C)
Max resolution: 16-bit
RTD input: Pt100 (EN 60751/A2, -200 ~ +650°C, min span 20°C), Ni100 (-60 ~ +250°C, min span 20°C), Pt500 (2, 3, 4 wire -200 ~ +650 °C), Pt1000 (2, 3, 4 wire -200~+200°C)
TC input: J, K, R, S, T, B, E, N type
Potentiometer input: 450 - 1.800 ohm
Voltage input: -150 ~ +150 mV
Isolation: 1.5KVac
Wiring: 2-wire, 3-wire, 4-wire
Process connection: Spring terminals
Output: 4-20, 20-4 mA, 2-wire
Power supply: 7-30 Vdc
Operating temperature: -40 ~ +85°C
Software configuration (KT120): start/full scale, interference (disturbance), RTD type, cable resistance, overrange, etc.

T121 Smart Temperature TransmitterApplications:
Widely used in temperature measurement process control in industrial fields such as petroleum, chemical, chemical fiber; textile, rubber, building materials, electric power, metallurgy, pharmaceutical, food, etc.
