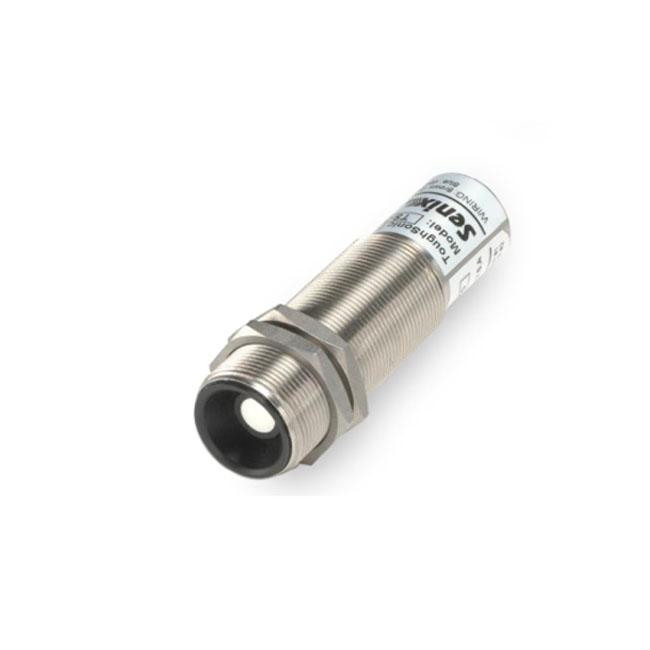

US SENIX Ultrasonic Level Sensor - ToughSonic-3

1.Ultrasonic Level Sensor ToughSonic-3 Product Description:

The ToughSonic 3 ultrasonic sensor has a detection range of 3 feet (91 cm). If you need a smaller detection range or a smaller ultrasonic beam size, the ToughSonic 3 is a good choice. The ToughSonic 3 features the same 30 mm stainless steel housing as the ToughSonic 14. It has a detection range of 1.75 inches (4.5 cm) and a narrow ultrasonic beam width for measurement in tight spaces. Moreover, like all ToughSonic sensors, it is rugged and easy to use in harsh industrial environments. It is fully submersible, corrosion-resistant, impact-resistant, and tough. It can also be fully configured with our SenixVIEW software.

2. Ultrasonic Level Sensor ToughSonic-3Features and Benefits:

Detection Range: 91cm
Companion PC software - SenixVIEW, sensor interface, timing parameters, filters, and modes are all configurable
Multiple output options: analog voltage, current, serial, switch output
Sensitivity can be optimized via PC software
Unaffected by optical factors
IP68 rated protection
Quick installation
Cost savings, reducing investment in PLCs, delay circuits, and delay relays

3. Ultrasonic Level Sensor ToughSonic-3Applications:

• Level or height detection
• Distance-proximity detection
• Target detection

4. Ultrasonic Level Sensor ToughSonic-3Product Specifications:

1. Range: 36 inches (91 cm)
2. Optimal Range: 24 inches (61 cm)
3. Operating Temperature: -40° to 158°F (-40° to 70°C)
4. Operating Humidity: 0 to 100% operation
5. Protection: NEMA-4X, NEMA-6P, IP68
6. Sensor: Rugged piezoelectric
7. Compensation: Temperature compensated
8. Resolution: Digital: 0.0034 inches (0.086 mm); Analog: 4099 steps (0-10 VDC), 3279 steps (4-20 mA)
9. Repeatability: Nominal 0.2% of range @ constant temperature, affected by target, distance, and environment
10. Update Rate: 20 Hz (50 ms), adjustable via SenixVIEW; also affected by SenixVIEW filter selection
