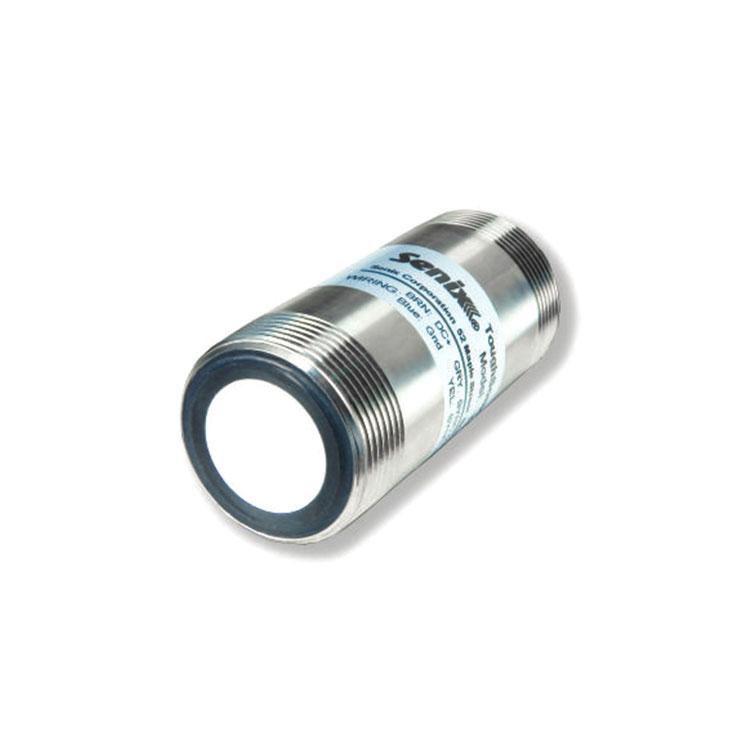

US SENIX Ultrasonic Level Sensor - ToughSonic-30

US SENIX Ultrasonic Level Sensor ToughSonic-30 Product Description:
The ToughSonic 30 ultrasonic sensor has a detection range of 30 feet (9.1 meters). Like all ToughSonic sensors, it is rugged and easy to use in harsh industrial environments. It is fully submersible, corrosion-resistant, impact-resistant, and thoroughly tough. It can also be fully configured with SenixVIEW software.
The 1.5-inch (38.1 mm) housing has 1.5-inch NPT threads on each end and a smooth middle section for various mounting options. The sensor features a 9-conductor cable that allows up to six simultaneous serial, analog, and/or switch outputs. These workhorse sensors are used worldwide in remote monitoring and demanding factory environments.

US SENIX Ultrasonic Level Sensor ToughSonic-30Features and Benefits:

Detection Range: 9.1m
PC software SenixVIEW for configuration of sensor interface, timing parameters, filters, and modes
Multiple output options: analog voltage, current, serial, switch output
Sensitivity can be optimized via PC software
Unaffected by optical factors
IP68 protection
Quick installation
Cost savings by reducing the need for PLCs, delay circuits, and delay relays

US SENIX Ultrasonic Level Sensor ToughSonic-30Applications:

Level or height detection

Remote level detection

Distance-proximity detection

Target detection

Factory automation applications

US SENIX Ultrasonic Level Sensor ToughSonic-30Specifications:

Range	30 feet (9.1 meters)
Recommended Range	10 inches - 20 feet (25.4 cm - 6.1 meters)
Temperature	-40° to 158°F (-40° to 70°C)
Humidity	0 to 100% operation
Protection	NEMA-4X，NEMA 6P，IP68
Sensors	Rugged piezoelectric
Compensation	Temperature compensation
Resolution	Digital: 0.0068 inches (0.172 mm); Analog: 4099 steps (0-10 VDC), 3279 steps (4-20 mA)
Repeatability	Nominal 0.2% of range at constant temperature; affected by target, distance, environment
Update Rate	10 Hz (100 ms), adjustable via SenixVIEW; affected by SenixVIEW filters
