Product Introduction

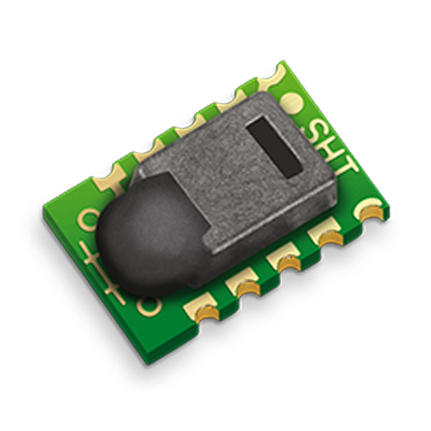

I. Swiss Sensirion Digital Humidity Sensor SHT10Product Description:
The SHT10 is an economical digital temperature and humidity sensor suitable for reflow soldering. It features high accuracy and low cost. Like all other SHTxx series products, the SHT10 is mass-produced, fully calibrated, and provides digital output.
The SHT1x digital humidity sensor is a reflow-solderable sensor. The SHT1x series includes the low-cost version SHT10, the standard version SHT11, and the high-end version SHT15. Like other Sensirion humidity sensors from the SHTxx family, they are fully calibrated and provide digital output.
The SHT1x humidity sensor series (including SHT10, SHT11, and SHT15) is Sensirion's surface-mount sensor family. It integrates the sensor element and signal processing circuitry in a minimal footprint and provides fully calibrated digital output. A unique capacitive sensor element is used to measure relative humidity, while temperature is measured by a bandgap sensor. Its CMOSens® technology ensures excellent reliability and long-term stability. The humidity sensor is seamlessly coupled to a 14-bit analog-to-digital converter and serial interface circuit, providing good signal quality, fast response time, and immunity to interference (EMC).
Each SHT1x humidity sensor is individually calibrated in a precision humidity chamber. The calibration coefficients are programmed into the OTP memory on the chip. These coefficients are used for internal calibration of the sensor signal. The two-wire serial interface and built-in voltage regulation allow for easy system integration. The SHT1x uses surface-mount LCC (leadless chip carrier) technology and can be used for standard reflow soldering. The same sensor is also available in a pin-type package (SHT7x).
II.Swiss Sensirion Digital Humidity Sensor SHT10Product Features:
Fully Calibrated
Digital Signal Output
Low Power Consumption
Excellent Long-Term Stability
SMD Package – Suitable for Reflow Soldering
III.Swiss Sensirion Digital Humidity Sensor SHT10Product Parameters:
| Dimensions |
7.5 x 4.9 x 2.6 mm |
| Output |
Digital (2-wire interface) |
| Voltage Range |
2.4 - 5.5 V |
| Power Consumption |
80µW (at 12-bit, 3V, 1 measurement/s) |
| Humidity Operating Range |
0 - 100% |
| Temperature Operating Range |
-40 - 125°C (-40 - 257°F) |
| Humidity Response Time |
8 seconds (tau63%) |
